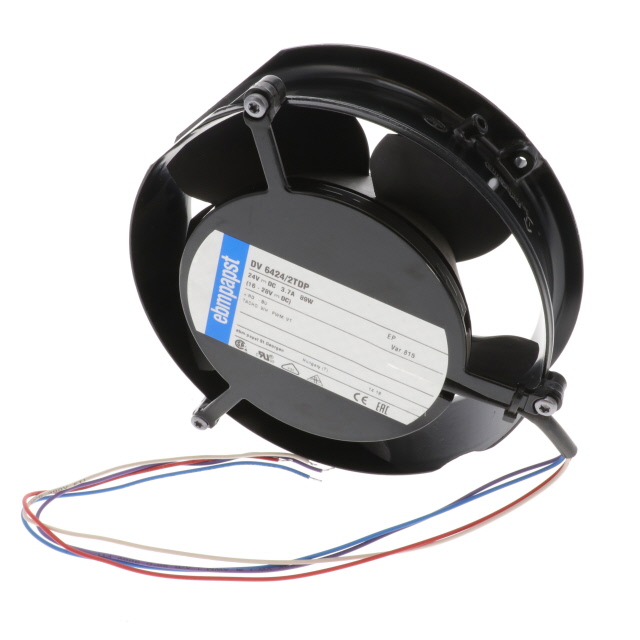

DV6424/2TDP-815

Obsolete

ebm-papst Inc.

FAN AXIAL 171.5X50.8MM 24VDC

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 171.5X50.8MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	DV6424/2TDP-815

Air Flow	400 CFM
Air Flow	11.2 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Metal
Noise	71 dB(A)
Power (Watts)	91 W
RPM	5500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171.5 mm
Size / Dimension [z]	159.7 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Width [y]	2 "

Part	Fan Type	Termination	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Material - Frame	Noise	Features	Width [y]	Power (Watts)	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	RPM	Material - Blade
ebm-papst Inc. DV6424/2TDP-815	Tubeaxial	3 Wire Leads	16 VDC	28 VDC	Ball	Metal	71 dB(A)	Speed Sensor (Tach)	2 "	91 W	400 CFM	11.2 mł/min	Rectangular/Rounded	171.5 mm	159.7 mm	24 VDC	5500 RPM	Fiberglass Reinforced Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 201.75

General part information

Fan Tubeaxial 24VDC Rectangular/Rounded - 171.5mm L x 159.7mm H Ball 400.0 CFM (11.20m³/min) 3 Wire Leads

Technical documentation and resources

No documents available
