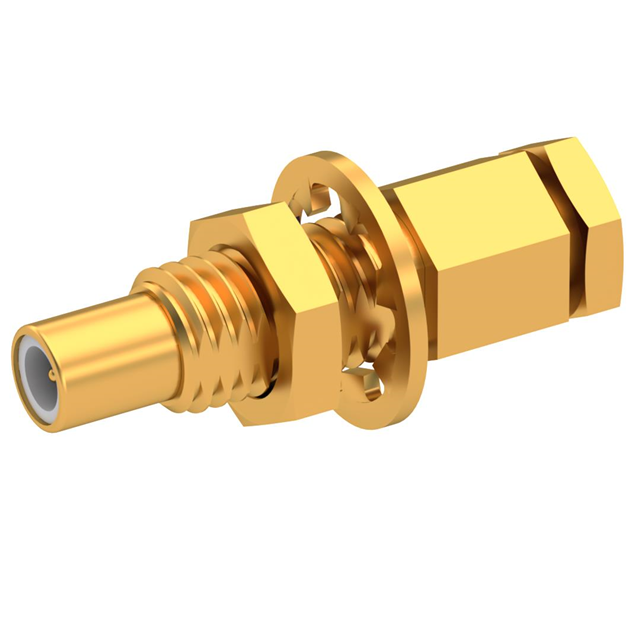

7003-1542-011

Active

Radiall USA, Inc.

SSMC M STR BHD SD .045

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC M STR BHD SD .045

Technical Specifications

Parameters and characteristics for this part

Specification	7003-1542-011

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	M17/151 (0.047" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Connector Type	Fastening Type	Shield Termination	Impedance	Includes	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Contact Termination	Body Finish	Mounting Feature	Connector Style	Dielectric Material	Frequency - Max [Max]	Number of Ports	Center Contact Material	Voltage Rating	Center Contact Plating	Body Material
Radiall USA, Inc. 7003-1542-011	Jack Male Pin	Snap-On	Clamp	50 Ohms	1 Connector 1 Lockwasher 1 Nut	Gold	500	-65 ░C	165 °C	M17/151 (0.047" Semi Rigid)	Solder	Gold	Bulkhead - Front Side Nut	SSMC	Polytetrafluoroethylene (PTFE)	12.4 GHz	1	Beryllium Copper	250 VDC	Gold	Beryllium Copper
