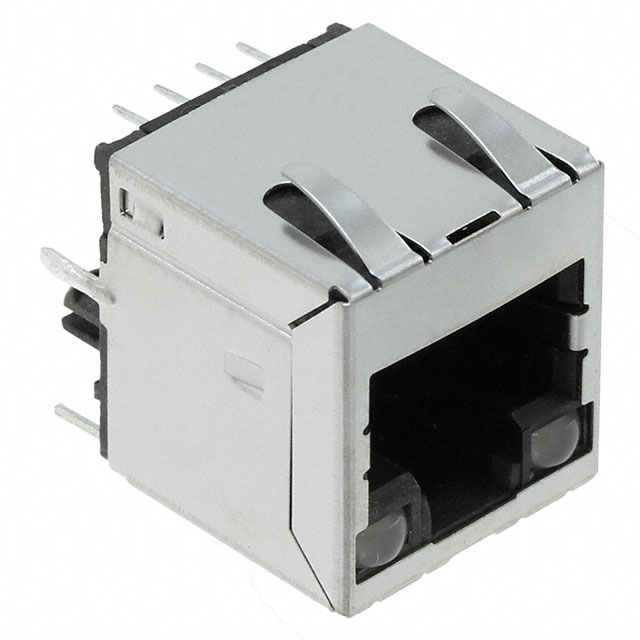

RJE45-188-14A1
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8PC8PC SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJE45-188-14A1
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8PC8PC SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE45-188-14A1 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Vertical |
| Ratings | Cat6 |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.69 | |
| 10 | $ 6.04 | |||
| 25 | $ 5.71 | |||
| 40 | $ 5.57 | |||
| 80 | $ 5.29 | |||
| 240 | $ 4.74 | |||
| 480 | $ 4.46 | |||
| 960 | $ 3.90 | |||
| 2400 | $ 3.71 | |||
Description
General part information
RJE45188 Series
Jack Modular Connector 8p8c (ARJ45, Ethernet, Split Pairs) Vertical Cat6
