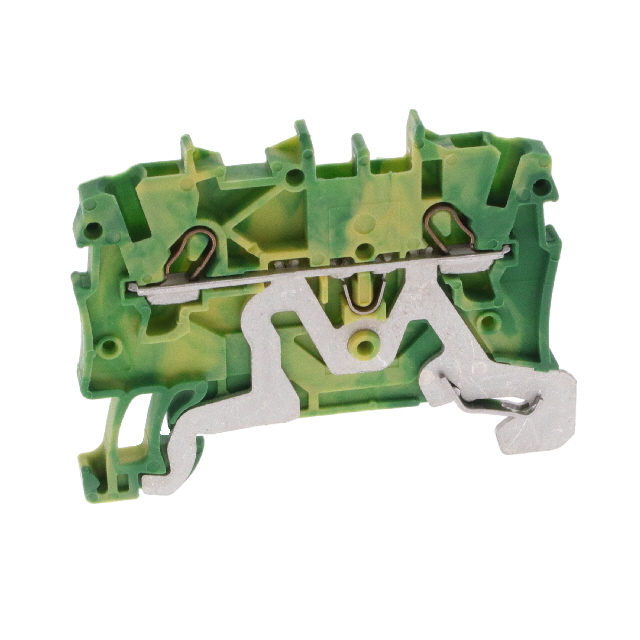

2000-1207
ActiveWAGO Corporation
2-CONDUCTOR GROUND TERMINAL BLOC
Deep-Dive with AI
Search across all available documentation for this part.
2000-1207
ActiveWAGO Corporation
2-CONDUCTOR GROUND TERMINAL BLOC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2000-1207 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [Max] | 11 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Ground, Earth |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.72 | |
| 10 | $ 6.09 | |||
| 100 | $ 5.05 | |||
| 1000 | $ 3.86 | |||
Description
General part information
2000-120 Series
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 16-20 AWG
Documents
Technical documentation and resources
No documents available
