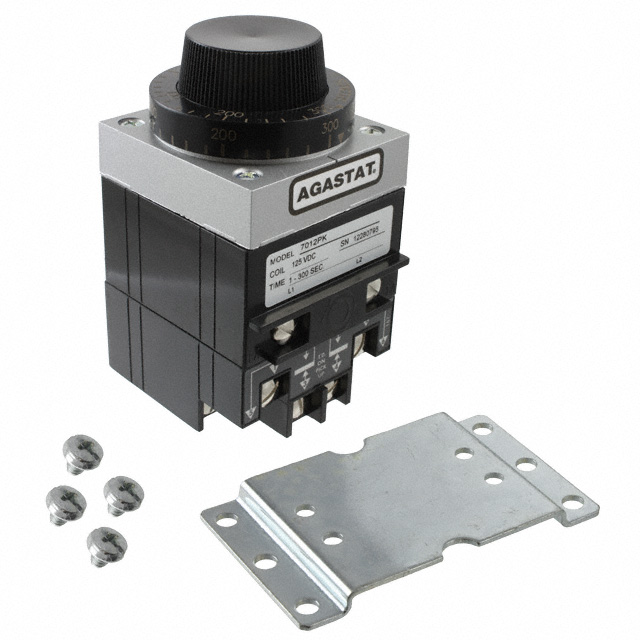

7012PK

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 300SEC 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 AGASTAT Series Instr Sheet Datasheet

7012PK

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 300SEC 10A 240V

Deep-Dive with AI

Documents7000 AGASTAT Series Instr Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7012PK

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	300 Sec
Delay Time [Min]	1 Sec
Function	On-Delay
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	125 V

1423159 Series

Part	Delay Time [Max]	Delay Time [Min]	Relay Type	Circuit	Contact Rating @ Voltage	Function	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply	Termination Style
TE Connectivity Aerospace, Defense and Marine 8-1423159-4	120 Min	3 Cyc	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	48 VDC	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012SCL	15 Sec	1.5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	250 VDC	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 9-1423159-1	200 Sec	20 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	250 VDC	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PJM	120 Min	3 Cyc	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PBL	5 Sec	0.5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 8-1423159-6	50 Sec	5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	28 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PBX	5 Sec	0.5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PDX	50 Sec	5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PK	300 Sec	1 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal
TE Connectivity Aerospace, Defense and Marine 7012PCM	15 Sec	1.5 Sec	Mechanical Relay	DPDT (2 Form C)	10 A 240 VAC	On-Delay	Hand Dial	Input Voltage	125 V	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 630.09
		10	$ 607.59

Description

General part information

1423159 Series

On-Delay Time Delay Relay DPDT (2 Form C) 1 Sec ~ 300 Sec Delay 10A @ 240VAC Panel Mount

Documents

Technical documentation and resources

7000 AGASTAT Series Instr Sheet

Datasheet
