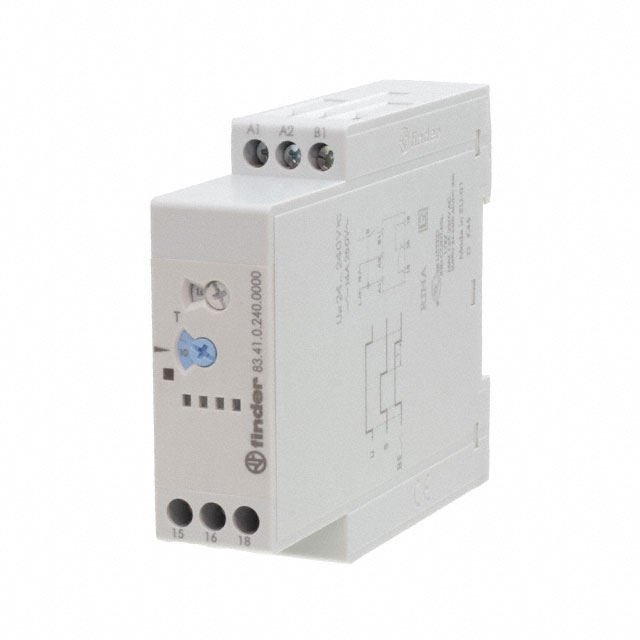

83.41.0.240.0000

Active

Finder Relays, Inc.

RELAY TIME DELAY 240HR 16A 250V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY TIME DELAY 240HR 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	83.41.0.240.0000

Contact Rating @ Voltage	250 VAC, 16 A
Delay Time [Max]	10 Days
Delay Time [Min]	0.05 Sec
Function	Off-Delay
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Delay Time [Min]	Delay Time [Max]	Mounting Type	Function	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Contact Rating @ Voltage	Relay Type	Timing Initiate Method
Finder Relays, Inc. 83.41.0.240.0000	0.05 Sec	10 Days	DIN Rail	Off-Delay	Screw Terminal	24 VAC	240 VAC	Screwdriver Slot	16 A 250 VAC	Mechanical Relay	Input Voltage Trigger Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Off-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 240 Hrs Delay 16A @ 250VAC DIN Rail

Technical documentation and resources

No documents available
