157-00180

Active

HELLERMANNTYTON

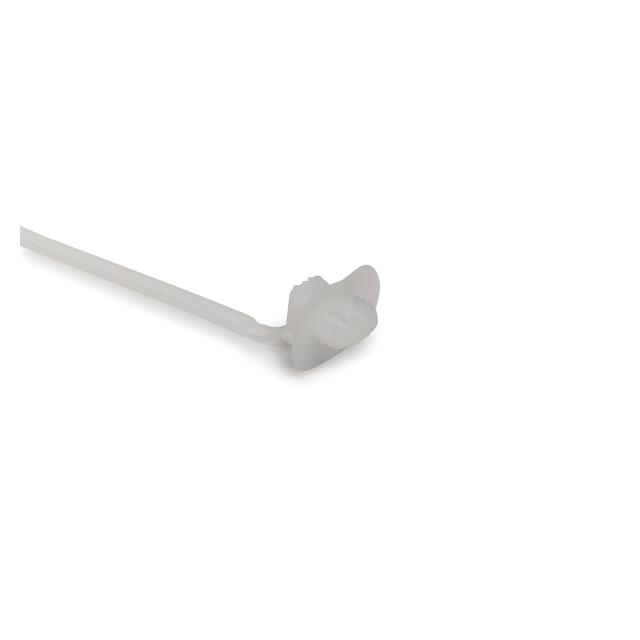

CABLE TIE MOUNTS 1-PC CABLE TIE/FIR TREE MOUNT WITH DISC, 7.1"L, 0.24 - 0.48" MOUNTING HOLE, PA66, NATURAL,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

157-00180

Active

HELLERMANNTYTON

CABLE TIE MOUNTS 1-PC CABLE TIE/FIR TREE MOUNT WITH DISC, 7.1"L, 0.24 - 0.48" MOUNTING HOLE, PA66, NATURAL,

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	157-00180

Bundle Diameter [diameter]	1.3 in
Bundle Diameter [diameter]	33 mm
Color	Natural
Length - Approximate	7 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Push Mount, Fir Tree
Tensile Strength	22.45 kg
Tensile Strength	49.5 lbs
Width [y]	5.1 mm
Width [y]	0.201 in
Wire/Cable Tie Type	Standard, Locking

157-00 Series

Cable Tie Mounts 1-Pc Cable Tie/Fir Tree Mount with Disc, 7.1"L, 0.24 - 0.48" mounting hole, PA66, natural,

...

Part	Width [x]	Width [x]	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Mounting Type	Length - Approximate	Material	Wire/Cable Tie Type	Bundle Diameter	Bundle Diameter	Color	Length - Actual	Length - Actual	Features	Length - Actual	Width [y]	Width [y]	Width	Length - Approximate [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]
HELLERMANNTYTON 157-00338	4.7 mm	0.185 in	22.68 kg	50 lbs	224 mm	8.82 in	0.735 ft	Stud Mount	8.75 in	Polyamide (PA46) Nylon 4/6	Locking Standard	50 mm	1.97 in	Brown
HELLERMANNTYTON 157-00171	4.7 mm	0.185 in	22.68 kg	50 lbs			0.707 ft	Fir Tree Push Mount	8.5 in	Polyamide (PA66) Nylon 6/6	Locking Standard	50 mm	1.97 in	Black	215.39 mm	8.48 in	Heat Stabilized Impact Modified
HELLERMANNTYTON 157-00401			54.43 kg	120 lbs				Stud Mount	12.75 in	Polyamide (PA66) Nylon 6/6	Locking Standard	82.55 mm	3.25 "	Black	322.58 mm		Heat Stabilized Impact Modified UV Resistant	1.058 ft
HELLERMANNTYTON 157-00303			22.68 kg	50 lbs	168 mm	6.61 in	0.551 ft	Fir Tree Push Mount	6.5 in	Polyamide (PA66) Nylon 6/6	Locking Standard	35 mm	1.38 in	Gray			Heat Stabilized		0.181 in	4.6 mm
HELLERMANNTYTON 157-00366		0.19 in	22.68 kg	50 lbs	215.9 mm	8.5 in	0.708 ft	Fir Tree Push Mount	8.5 in	Polyamide (PA66) Nylon 6/6	Locking Standard	50 mm	1.97 in	Gray			Heat Stabilized Impact Modified				4.83 mm
HELLERMANNTYTON 157-00467			20.41 kg	45 lbs	160 mm	6.3 "	0.525 '	Standoff Stud Mount		Polyamide (PA66) Nylon 6/6	Locking Standard	35 mm	1.38 in	Black			Heat Stabilized		0.181 in	4.6 mm		6.25 in
HELLERMANNTYTON 157-00180			22.45 kg	49.5 lbs				Fir Tree Push Mount	7 in	Polyamide (PA66) Nylon 6/6	Locking Standard			Natural					0.201 in	5.1 mm			1.3 in	33 mm
HELLERMANNTYTON 157-00217			22.68 kg	50 lbs				Fir Tree Push Mount	9.25 in	Polyamide (PA66) Nylon 6/6	Locking Standard	50 mm	1.97 in	Black	231.8 mm	9.13 in	Heat Stabilized Impact Modified	0.76 ft	0.201 in	5.1 mm
HELLERMANNTYTON 157-00343	5.5 mm	0.217 in	36.29 kg	80 lbs				Stud Mount	8.5 in	Polyamide (PA46) Nylon 4/6	Locking Standard	50 mm	1.97 in	Brown	215 mm	8.46 in		0.705 ft
HELLERMANNTYTON 157-00288	4.57 mm	0.18 in	22.45 kg	49.5 lbs				Fir Tree Push Mount		Polyamide (PA46) Nylon 4/6	Locking Standard			Brown	228.6 mm	9 "		0.75 '				9 in	0.27 in	6.86 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60000	$ 0.15
Sager	N/A	60000	$ 0.21

Description

General part information

157-00 Series

Cable Tie Mounts 1-Pc Cable Tie/Fir Tree Mount with Disc, 7.1"L, 0.24 - 0.48" mounting hole, PA66, natural,

Documents

Technical documentation and resources

Datasheet

Document
