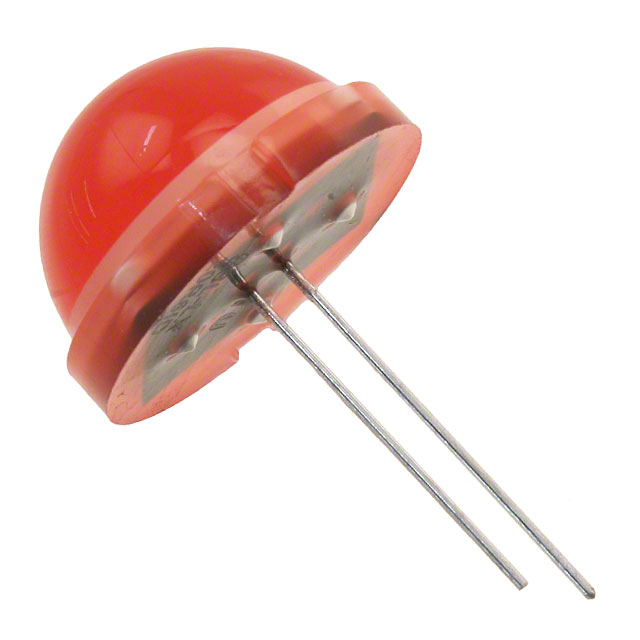

SSL-LX20R6ID

Active

Lumex Opto/Components Inc.

LED RED DIFFUSED 6CHIP JUMBO T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED DIFFUSED 6CHIP JUMBO T/H

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Lens Color	Wavelength - Peak	Supplier Device Package	Current - Test	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Configuration	Mounting Type	Color	Height (Max) [Max]	Viewing Angle	Lens Size [diameter]	Lens Style
Lumex Opto/Components Inc. SSL-LX20R6ID	35 mcd	Red	635 nm	6-CHIP JUMBO	20 mA	Radial	Diffused	6 V	Standard	Through Hole	Red	13.5 mm	120 °	20 mm	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX20R6SID	200 mcd	Red	636 nm	6-CHIP JUMBO	20 mA	Radial	Diffused	6.3 V	Standard	Through Hole	Red	13.5 mm	120 °	20 mm	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX20R6GD	25 mcd	Green	565 nm	6-CHIP JUMBO	20 mA	Radial	Diffused	6.6 V	Standard	Through Hole	Green	13.5 mm	120 °	20 mm	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX20R6YD	23 mcd	Yellow	585 nm	6-CHIP JUMBO	20 mA	Radial	Diffused	6.3 V	Standard	Through Hole	Yellow	13.5 mm	120 °	20 mm	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red LED Indication - Discrete 6V Radial

Technical documentation and resources

No documents available
