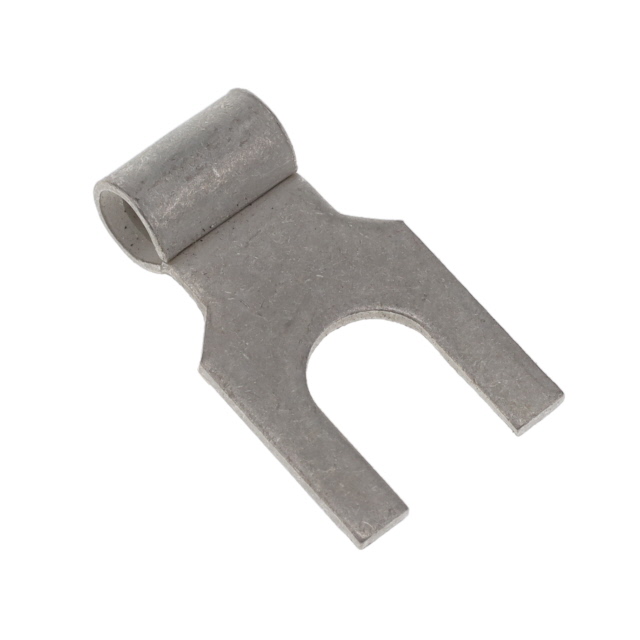

0190420008

Obsolete

Molex

CONN SPADE TERM 14-16AWG #10

Search across all available documentation for this part.

Obsolete

Molex

CONN SPADE TERM 14-16AWG #10

Technical Specifications

Parameters and characteristics for this part

Specification	0190420008

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Termination	6.3 mm
Length - Termination	0.248 in
Mounting Type	Free Hanging (In-Line), Right Angle
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges	9.83 mm
Width - Outer Edges	0.387 in

Part	Contact Material	Insulation	Termination	Length - Termination	Length - Termination	Contact Finish	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Terminal Type	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size
Molex 0190420008	Copper	Non-Insulated	Crimp	6.3 mm	0.248 in	Electro-Tin	9.83 mm	0.387 in	10 Stud	Standard	Free Hanging (In-Line) Right Angle	5.03 mm	0.198 in
Molex 0190420006	Copper	Non-Insulated	Crimp	6.3 mm	0.248 in	Electro-Tin	9.83 mm	0.387 in		Standard	Free Hanging (In-Line) Right Angle	4.39 mm	0.173 in	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Stud Spade Terminal Connector Crimp 14-16 AWG
