Q-2Y0550008108I

Active

Amphenol Custom Cable

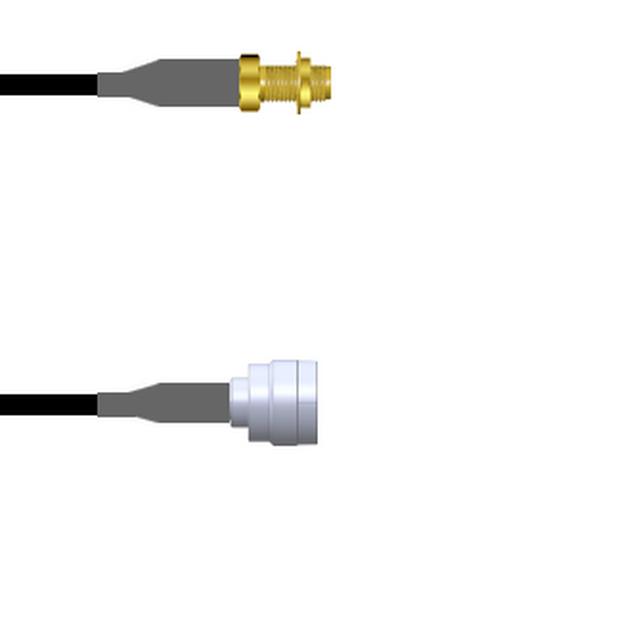

CBL ASSY SMA-TNC JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2Y0550008108I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Y0550008108I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2Y0550 Series

Part	2nd Contact Gender	Frequency - Max [Max]	1st Contact Gender	2nd Connector	1st Connector Mounting Type	Length	Length	Length	Features	1st Connector	Overall Impedance	Style	Cable Impedance	Cable Type	Color	2nd Connector Mounting Type	1st Connector Mounting Feature	Connector Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-2Y0550008002M	Male	1 GHz	Female	TNC Plug	Panel Mount	6.6 ft	78.7 in	2 m	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008.75M	Male	1 GHz	Female	TNC Plug	Panel Mount		29.53 "	750 mm	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008018I	Male	1 GHz	Female	TNC Plug	Panel Mount				Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2Y0550008060I	Male	1 GHz	Female	TNC Plug	Panel Mount	5 ft	5 '	1.5 m	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y05500081.5M	Male	1 GHz	Female	TNC Plug	Panel Mount	4.9 ft	59.1 in	1.5 m	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008108I	Male	1 GHz	Female	TNC Plug	Panel Mount	9 ft	108 in	2.7 m	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008048I	Male	1 GHz	Female	TNC Plug	Panel Mount	4 ft	48 in	1200 mm	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008003M	Male	1 GHz	Female	TNC Plug	Panel Mount	9.8 '	118.1 in	3 m	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008006I	Male	1 GHz	Female	TNC Plug	Panel Mount		6 in	152.4 mm	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-2Y0550008009I	Male	1 GHz	Female	TNC Plug	Panel Mount		9 "	228.6 mm	Shielded	SMA Jack	50 Ohms	SMA to TNC	50 Ohms	RG-58	Black	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.79
		25	$ 88.30
		50	$ 81.81
		100	$ 76.25
		250	$ 71.61

Description

General part information

Q-2Y0550 Series

Cable Assembly Coaxial SMA to TNC RG-58 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
