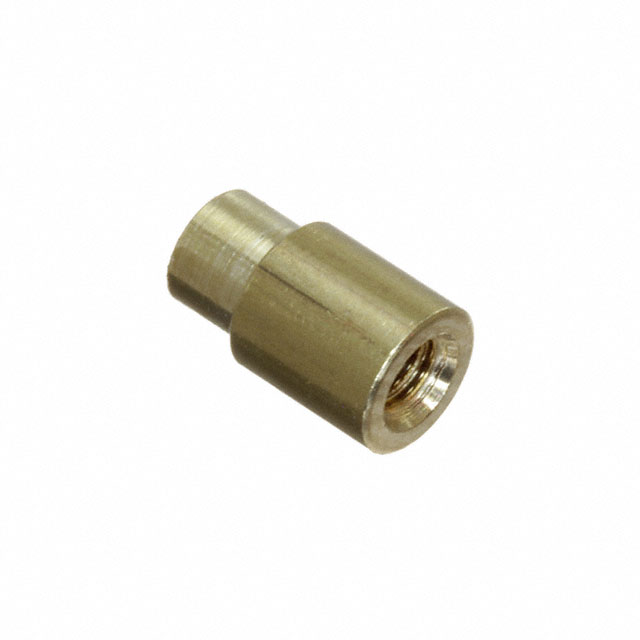

M1502-B-2545-B
ActiveRAF Electronic Hardware
4.5MM RD X 5MM X M2.5 THD
Deep-Dive with AI
Search across all available documentation for this part.
M1502-B-2545-B
ActiveRAF Electronic Hardware
4.5MM RD X 5MM X M2.5 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1502-B-2545-B |
|---|---|
| Between Board Height | 0.197 in |
| Between Board Height | 5 mm |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 4.5 mm |
| Diameter - Outside [diameter] | 0.177 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.303 " |
| Length - Overall [x] | 7.7 mm |
| Material | Brass |
| Screw, Thread Size | M2.5x0.45 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.26 | |
| 5 | $ 1.91 | |||
| 10 | $ 1.79 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.37 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.25 | |||
Description
General part information
M1502 Series
Round Standoff Threaded M2.5x0.45 Brass 0.197" (5.00mm)
