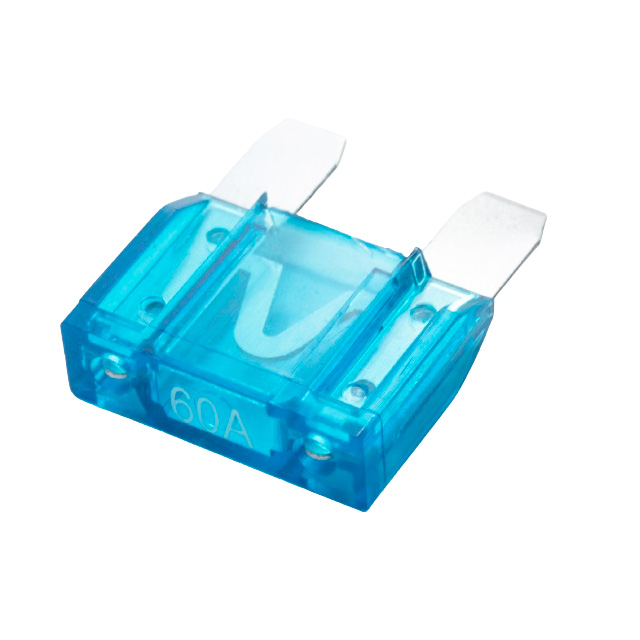

APX-60A
ActiveOptiFuse
FUSE AUTO 60A 32VDC BLADE MAX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APX-60A
ActiveOptiFuse
FUSE AUTO 60A 32VDC BLADE MAX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APX-60A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Blue |
| Current Rating (Amps) | 60 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Max |
| Response Time | Fast Blow |
| Size / Dimension [x] | 1.169 " |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [y] | 8.9 mm |
| Size / Dimension [z] | 0.85 " |
| Size / Dimension [z] | 21.6 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.61 | |
| 10 | $ 3.44 | |||
| 25 | $ 3.18 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.58 | |||
| 250 | $ 2.41 | |||
| 500 | $ 2.24 | |||
| 1000 | $ 2.15 | |||
Description
General part information
APX-60 Series
60 A AC 32 V DC Fuse Automotive Requires Holder Blade, Max
