1181/20C SL005

Active

ALPHA WIRE

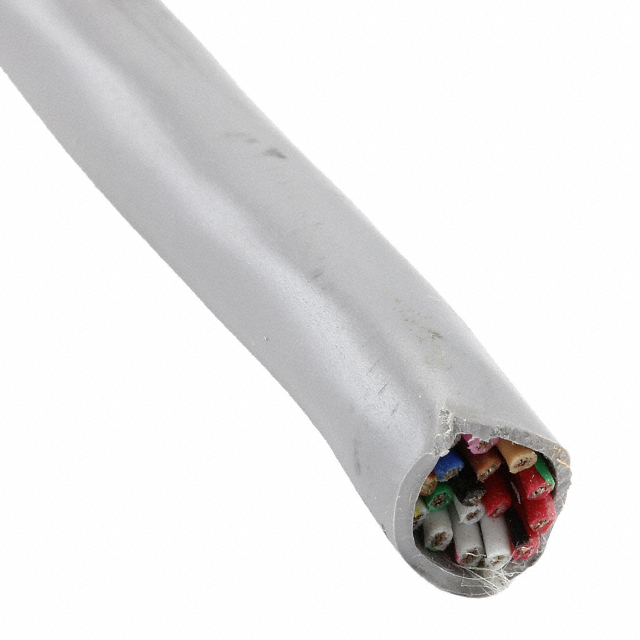

CABLE 20COND 22AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 20COND 22AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1181/20C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	8.28 mm
Jacket (Insulation) Diameter [diameter]	0.326 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Number of Conductors	Usage	Conductor Insulation	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1181/20C SL001	Copper Tinned	7	30 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	20	Communication Control	Poly-Vinyl Chloride (PVC)	Slate	8.28 mm	0.326 in	300 V	-20 C	80 C	22 AWG	1000 ft	304.8 m
ALPHA WIRE 1181/20C SL005	Copper Tinned	7	30 AWG	Poly-Vinyl Chloride (PVC)	Multi-Conductor	20	Communication Control	Poly-Vinyl Chloride (PVC)	Slate	8.28 mm	0.326 in	300 V	-20 C	80 C	22 AWG			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 468.83

General part information

20 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
