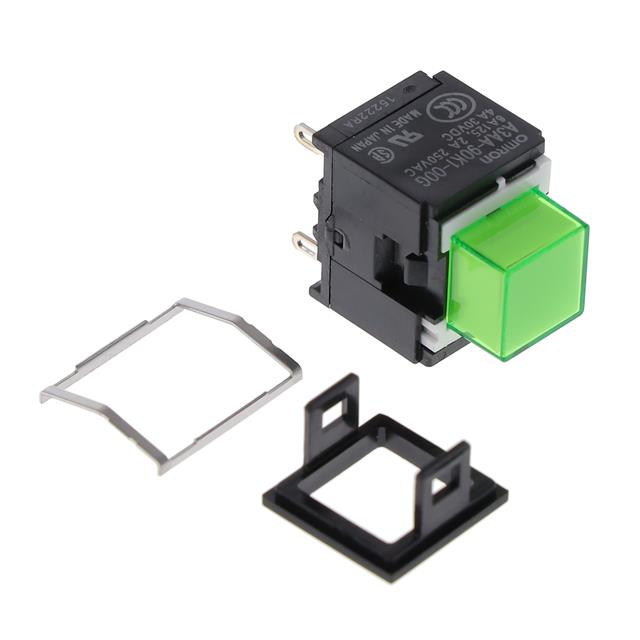

A3AA-90K1-00G
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSH SPST-NO 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3AA-90K1-00G
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSH SPST-NO 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3AA-90K1-00G |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP00 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 11.5 mm |
| Panel Cutout Dimensions [y] | 11.5 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.36 | |
| 10 | $ 13.77 | |||
| 25 | $ 13.16 | |||
| 50 | $ 12.48 | |||
| 100 | $ 12.03 | |||
| 250 | $ 11.27 | |||
| 500 | $ 10.44 | |||
| 1000 | $ 9.85 | |||
Description
General part information
A3AA-90K Series
Pushbutton Switch SPST-NO Standard Panel Mount, Rear
