25382 BK005

Active

ALPHA WIRE

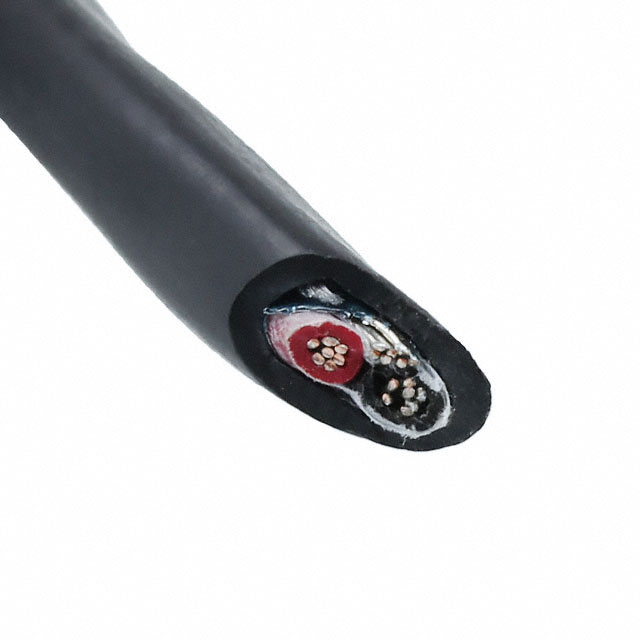

MULTICONDUCTOR CABLE, SHIELDED, 2 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 2 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	25382 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Length	Jacket Color	Conductor Material	Shield Type	Spool Size	Spool Size	Wire Gauge	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket (Insulation) Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Ratings	Conductor Insulation	Shield Material	Number of Conductors	Length [x]	Length [x]
ALPHA WIRE 25382 BK199	Enter Number of Feet in Order Quantity	Black	Copper Tinned	Foil	1000 ft	304.8 m	18 AWG	100 %	16	30 AWG	5.84 mm	0.23 in	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	Multi-Conductor	-30 ░C	90 °C	300 V	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	Aluminum	2
ALPHA WIRE 25382 BK005		Black	Copper Tinned	Foil			18 AWG	100 %	16	30 AWG	5.84 mm	0.23 in	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	Multi-Conductor	-30 ░C	90 °C	300 V	ISO 10993 UL Style 20668	Poly-Vinyl Chloride (PVC)	Aluminum	2	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 281.55
Newark	Spool of 100	1	$ 362.73

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG Foil 100.0' (30.5m)
