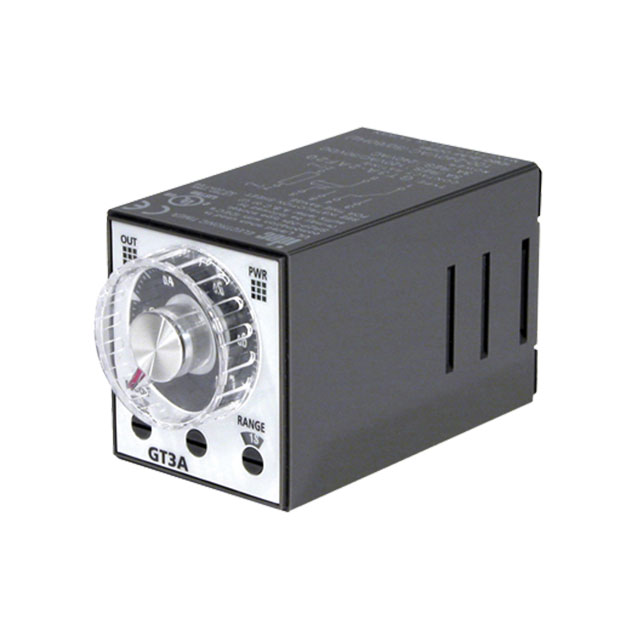

GT3A-1AF20
ActiveANALOG TIMER, MULTI MODE, GT3A SERIES, MULTIFUNCTION, 16 RANGES, 0.1 S, 180 H, 1 CHANGEOVER RELAY
Deep-Dive with AI
Search across all available documentation for this part.
GT3A-1AF20
ActiveANALOG TIMER, MULTI MODE, GT3A SERIES, MULTIFUNCTION, 16 RANGES, 0.1 S, 180 H, 1 CHANGEOVER RELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GT3A-1AF20 |
|---|---|
| Contact Rating @ Voltage | 240 VAC, 3 A |
| Delay Time [Max] | 180 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GT3A-1AF Series
The GT3A series flexible multi-mode/-range Analogue Timers with 5A contacts in octal plug in format. Time range up to 180 hours. Both power on and momentary input trigger type SPDT and DPDT contact configuration. It has corresponding IDEC sockets to make the most efficient connection. This series features 4 selectable operation modes on each model, external start, reset and gate inputs.
