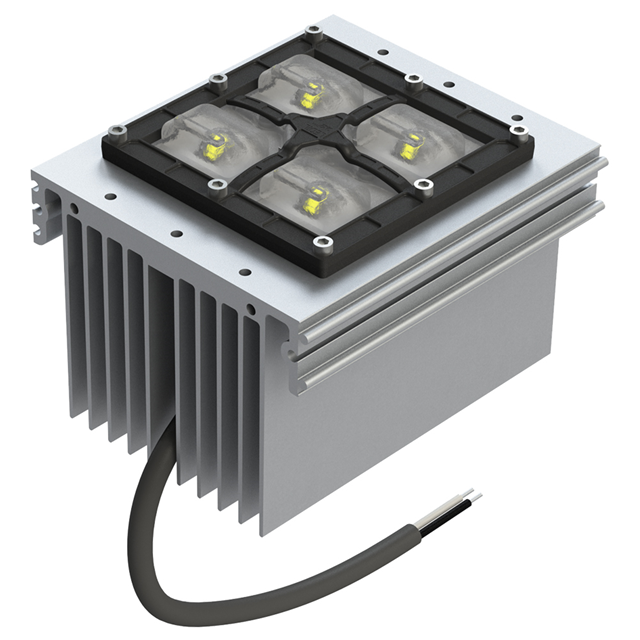

MP22T1-C24-5070-T2-1-00

Active

New Energy

LED MOD XHP70 CL WHT RECT 5000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP70 CL WHT RECT 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	MP22T1-C24-5070-T2-1-00

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Rectangle
CRI (Color Rendering Index)	70
Current - Test	1.05 A
Features	IP67
Height [z]	99.31 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	140 lm/W
Luminous Flux @ Current/Temperature	6840 lm
Size / Dimension [y]	111 mm
Size / Dimension [z]	5 in
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	46.4 V

Part	Color	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Features	Height [z]	Voltage - Forward (Vf) (Typ)	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	Configuration	Type	Current - Test	Temperature - Test	Size / Dimension [z]	Lumens/Watt @ Current - Test	CCT (K)
New Energy MP22T1-C24-5070-DWC-1-00	Cool White	5 "	5 in	70	IP67	3.8 in	44.6 V	5000 K	5050 lm	Flat	Square	LED Module
New Energy MP22T1-C24-4070-W-1-00	Neutral White	111 mm		70	IP67	99.31 mm	46.4 V	4000 K	6360 lm	Domed	Rectangle	LED Module	1.05 A	85 °C	5 in	131 lm/W
New Energy MP22T1-C24-5070-T2-1-00	Cool White	111 mm		70	IP67	99.31 mm	46.4 V	5000 K	6840 lm	Domed	Rectangle	LED Module	1.05 A	85 °C	5 in	140 lm/W	5-Step MacAdam Ellipse
New Energy MP22T1-C24-4070-WW-1-00	Neutral White	110.99 mm	5 in	70	IP67	3.8 in		4000 K		Domed	Rectangle	LED Module
New Energy MP22T1-C24-3070-WW-1-00	Warm White	110.99 mm	5 in	70	IP67	3.8 in				Domed	Rectangle	LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module XHP70 White, Cool Rectangle
