CNX718N400120W

Active

Visual Communications Company - VCC

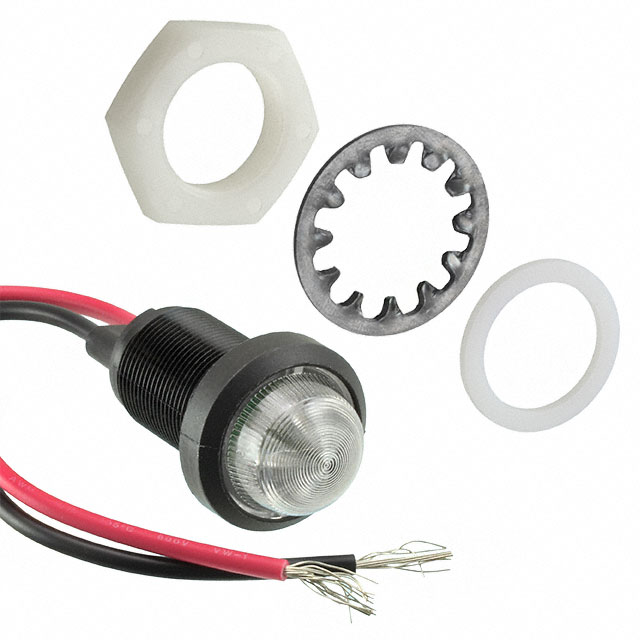

LED 18MM AMBER 120V WIRE PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

CNX718N400120W

Active

Visual Communications Company - VCC

LED 18MM AMBER 120V WIRE PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CNX718N400120W

Lamp Color	Amber
Lens Color	Amber
Lens Size [diameter]	18.5 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	2800 mcd
Panel Cutout Dimensions	17.53 mm
Panel Cutout Dimensions	0.69 in
Panel Cutout Shape	Round
Ratings	AC
Type	LED
Voltage	120 V

CNX718 Series

Part	Lens Color	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Panel Cutout Shape	Type	Lamp Color	Ratings	Lens Transparency	Millicandela Rating	Voltage	Termination Style
Visual Communications Company - VCC CNX718N90005W	White	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	White	DC	Clear	2500 mcd	5 V
Visual Communications Company - VCC CNX718N50028W	Clear	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Green	DC	Fresnel	2400 mcd	28 V
Visual Communications Company - VCC CNX718N900120W	White	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	White	AC	Clear	2500 mcd	120 V
Visual Communications Company - VCC CNX718N90005T	White	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	White	DC	Clear	2500 mcd	5 V	Quick Connect - 0.187" (4.7mm)
Visual Communications Company - VCC CNX718N40028T	Amber	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Amber	DC	Clear	2800 mcd	28 V	Quick Connect - 0.187" (4.7mm)
Visual Communications Company - VCC CNX718N500120W	Green	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Green	AC	Clear	2400 mcd	120 V
Visual Communications Company - VCC CNX718N50005T	Green	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Green	DC	Clear	2400 mcd	5 V	Quick Connect - 0.187" (4.7mm)
Visual Communications Company - VCC CNX718N40005W	Amber	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Amber	DC	Clear	2800 mcd	5 V
Visual Communications Company - VCC CNX718N40005T	Amber	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Amber	DC	Clear	2800 mcd	5 V	Quick Connect - 0.187" (4.7mm)
Visual Communications Company - VCC CNX718N400120W	Amber	18.5 mm	17.53 mm	0.69 in	Round with Domed Top	Round	LED	Amber	AC	Clear	2800 mcd	120 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.33
		10	$ 14.80
		100	$ 12.46
		500	$ 11.61

Description

General part information

CNX718 Series

LED Panel Indicator Amber Clear 120V Wire Leads - 6" (152.40mm)

Documents

Technical documentation and resources

No documents available
