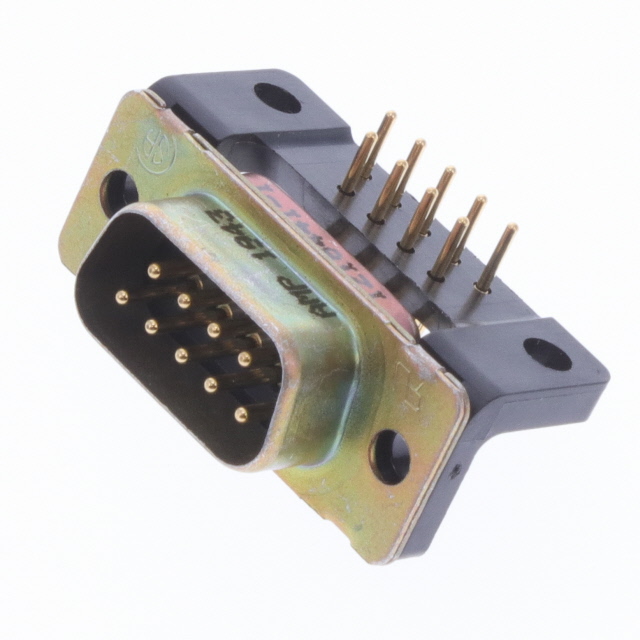

1218441-1
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1218441-1
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1218441-1 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish [custom] | Steel |
| Shell Material, Finish [custom] | Cadmium Plated |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.88 | |
| 12 | $ 34.05 | |||
| 36 | $ 30.33 | |||
| 60 | $ 28.79 | |||
| 108 | $ 27.15 | |||
| 252 | $ 25.02 | |||
Description
General part information
1218441 Series
9 Position D-Sub Plug, Male Pins Connector
