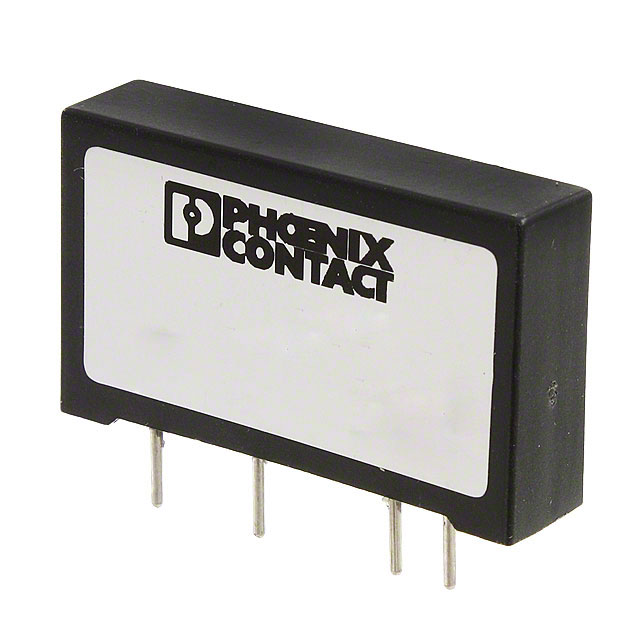

2982647
ActivePhoenix Contact
SSR RELAY SPST-NO 4A 1-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2982647
ActivePhoenix Contact
SSR RELAY SPST-NO 4A 1-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2982647 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Load Current | 4 A |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | 4-SIP |
| Termination Style | Plug In |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.09 | |
| 10 | $ 48.84 | |||
| 50 | $ 45.13 | |||
| 100 | $ 43.00 | |||
Description
General part information
298264 Series
Solid State SPST-NO (1 Form A) 4-SIP
