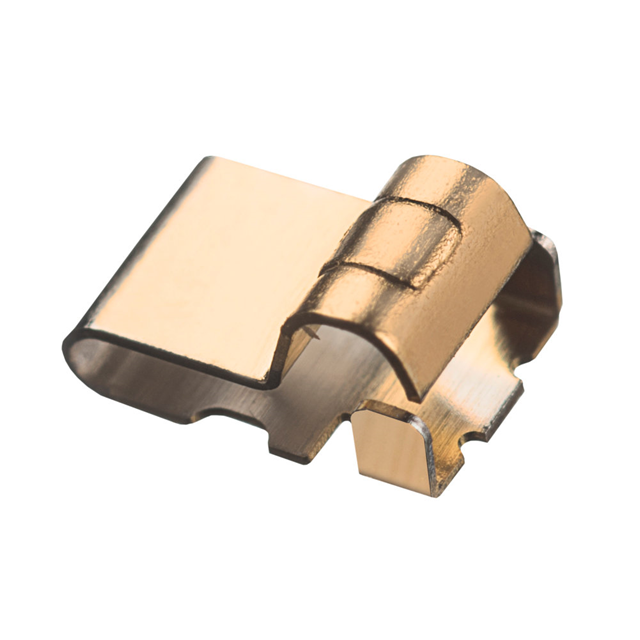

S7261-45R
ActiveHarwin Inc.
SPRING CONTACT, 3 X 2 X 1.5 MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
S7261-45R
ActiveHarwin Inc.
SPRING CONTACT, 3 X 2 X 1.5 MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S7261-45R |
|---|---|
| Attachment Method | Solder |
| Length [x] | 3 mm |
| Length [x] | 0.118 " |
| Material | Copper Alloy |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Plating | Gold |
| Plating - Thickness | Flash |
| Type | Shield Finger, Pre-Loaded |
| Width [x] | 2 mm |
| Width [x] | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.40 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.43 | |||
| 25 | $ 0.40 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
| Tape & Reel (TR) | 8000 | $ 0.17 | ||
| 16000 | $ 0.15 | |||
| 24000 | $ 0.15 | |||
| 56000 | $ 0.14 | |||
| Newark | Each (Supplied on Full Reel) | 8000 | $ 0.20 | |
| 16000 | $ 0.17 | |||
| 32000 | $ 0.15 | |||
| 48000 | $ 0.14 | |||
Description
General part information
S7261 Series
SPRING CONTACT, 3 X 2 X 1.5 MM, SMT ROHS COMPLIANT: YES
