SHCS03-5,00

Active

Altech Corporation

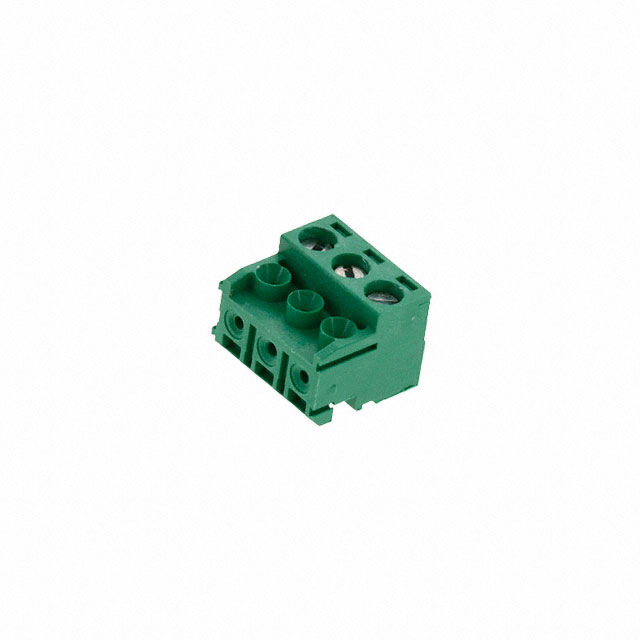

TERM BLOCK PLUG 3POS 5MM

Search across all available documentation for this part.

Active

Altech Corporation

TERM BLOCK PLUG 3POS 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHCS03-5,00

Color	Green
Contact Material	Copper
Contact Mating Finish	Nickel
Current - IEC	15 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	11.5 mm
Insulation Height	0.453 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90°, 180°
Positions Per Level	3
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.51 Nm
Torque - Screw	4.5 Lb-In
Type	Plug for Unshrouded Header
Voltage - IEC	250 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛ [Max]	4 mm˛
Wire Gauge or Range - mm˛ [Min]	0.25 mm˛
Wire Strip Length	7 mm

Part	Positions Per Level	Housing Material	Mounting Type	Type	Number of Levels	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Voltage - IEC	Insulation Height	Insulation Height	Current - IEC	Termination Style	Contact Mating Finish	Color	Wire Strip Length	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Material	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Plug Wire Entry	Screw Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Altech Corporation SHCS03-5,00	3	Polyamide (PA) Nylon	Free Hanging (In-Line)	Plug for Unshrouded Header	1	300 V	-30 ░C	105 ░C	0.51 Nm	4.5 Lb-In	250 V	11.5 mm	0.453 in	15 A	Screw - Rising Cage Clamp	Nickel	Green	7 mm	5 mm	0.197 in	UL94 V-0	Copper	0.25 mm˛	4 mm˛	180° 90°	M3	14 AWG	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.90

General part information

3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° and 180° Free Hanging (In-Line)
