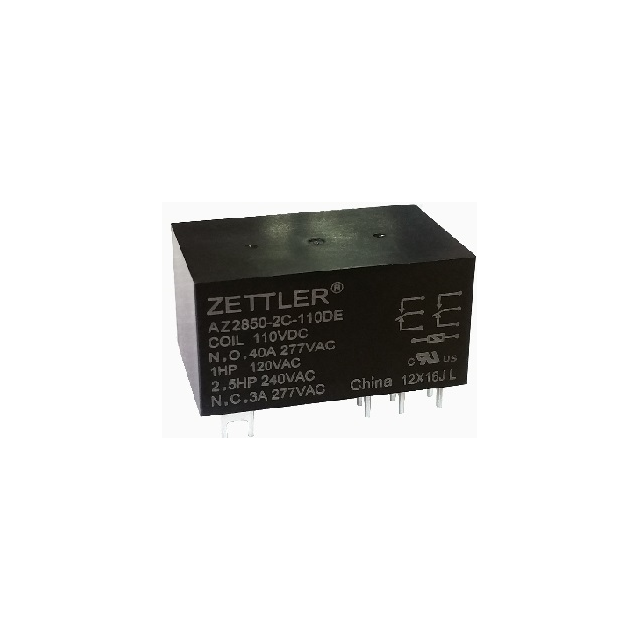

AZ2850-2C-12DE

Active

American Zettler

RELAY EV CHG SOLAR DPDT 3A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2850-2C-12DE

Active

American Zettler

RELAY EV CHG SOLAR DPDT 3A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ2850-2C-12DE

Approval Agency	UL, VDE, cUR
Coil Current	140 mA
Coil Insulation	Class F
Coil Resistance	86 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	3 A
Load - Max Switching	1200 W, 11080 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	25 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	25 ms
Seal Rating	Sealed - Fully
Switching Voltage	30 VDC, 600 VAC
Termination Style	PC Pin

AZ2850-2C Series

Part	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Load - Max Switching	Coil Insulation	Contact Form	Coil Voltage	Contact Material	Operate Time	Coil Resistance	Coil Type	Coil Current	Seal Rating	Release Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Termination Style	Approval Agency	Relay Type
American Zettler AZ2850-2C-24DE	3 A	18 VDC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	24 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	350 Ohms	Non Latching	68.5 mA	Sealed - Fully	25 ms	30 VDC 600 VAC	85 °C	-40 °C	2.4 VDC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-120A6	40 A	96 VAC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	120 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	830 Ohms	Non Latching	33.3 mA		25 ms	30 VDC 600 VAC	65 °C	-40 °C	24 VAC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-24A	40 A	19.2 VAC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	24 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	35.7 Ohms	Non Latching	166 mA		25 ms	30 VDC 600 VAC	65 °C	-40 °C	4.8 VAC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-48DEF	40 A	36 VDC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	48 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	1.39 kOhms	Non Latching	34.5 mA	Sealed - Fully	25 ms	30 VDC 600 VAC	85 °C	-40 °C	4.8 VDC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-240A5	40 A	192 VAC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	240 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	4.5 kOhms	Non Latching	16.7 mA		25 ms	30 VDC 600 VAC	65 °C	-40 °C	48 VAC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-12DE	3 A	9 VDC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	12 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	86 Ohms	Non Latching	140 mA	Sealed - Fully	25 ms	30 VDC 600 VAC	85 °C	-40 °C	1.2 VDC	PC Pin	cUR UL VDE	General Purpose
American Zettler AZ2850-2C-120A5E	40 A	96 VAC	Through Hole	1200 W 11080 VA	Class F	DPDT (2 Form C)	120 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	1.125 kOhms	Non Latching	33.3 mA	Sealed - Fully	25 ms	30 VDC 600 VAC	65 °C	-40 °C	24 VAC	PC Pin	cUR UL VDE	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.20
		20	$ 7.68
		40	$ 6.49
		80	$ 6.15
		240	$ 6.01

Description

General part information

AZ2850-2C Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
