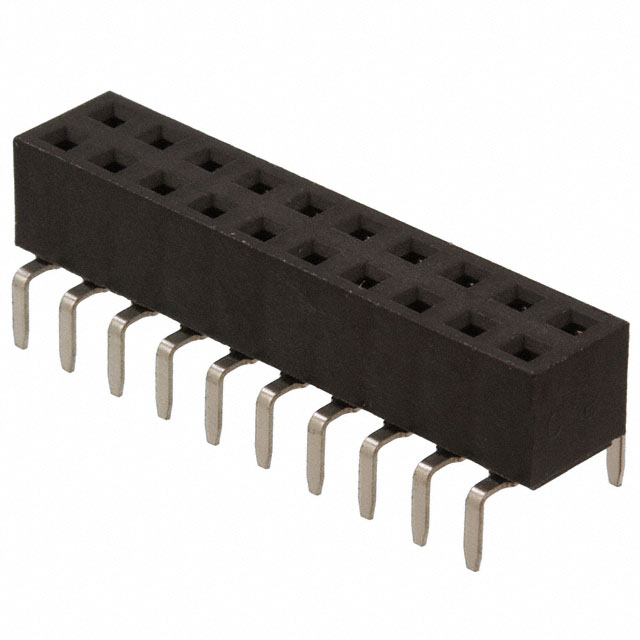

M20-7851046

Active

Harwin Inc.

CONN RCPT 20POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M20 Series Spec Sheet +1

M20-7851046

Active

Harwin Inc.

CONN RCPT 20POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet M20 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7851046

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-785 Series

Part	Mounting Type	Contact Type	Applications	Material Flammability Rating	Connector Type	Style	Contact Finish - Post	Insulation Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Insulation Color	Fastening Type	Number of Rows	Contact Shape	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating
Harwin Inc. M20-7850846	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm	16	All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm
Harwin Inc. M20-7850346	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	6
Harwin Inc. M20-7850542	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	10	Gold
Harwin Inc. M20-7850442	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	8	Gold
Harwin Inc. M20-7851042	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	20	Gold
Harwin Inc. M20-7850446	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	8
Harwin Inc. M20-7851046	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	20
Harwin Inc. M20-7850342	Through Hole	Female Socket	General Purpose Industrial Telecommunications	UL94 V-0	Receptacle Bottom or Top Entry	Board to Board Cable	Tin	Nylon 6T Polyamide (PA6T)	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	3 A	Phosphor Bronze	0.118 in	3 mm		All	0.1 in	2.54 mm	1000 VDC	Black	Push-Pull	2	Square	0.197 in	5 mm	6	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.48
		22	$ 2.00
		110	$ 1.78
		506	$ 1.60
		1012	$ 1.52
		5016	$ 1.36

Description

General part information

M20-785 Series

20 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Tin
