Technical Specifications
Parameters and characteristics for this part
| Specification | CM30-1.9-01AC |
|---|---|
| Current - Max [Max] | 1.9 A |
| Delta Tmax @ Th | 71 °C, 27 °C |
| Features | Exterior Metallization (Both Sides), Lead Wires |
| Height [z] | 1.65 mm |
| Number of Stages | 1 |
| Qmax @ Th | 4.5 W |
| Resistance | 1.6 Ohms |
| Size / Dimension [x] | 12.3 mm |
| Size / Dimension [y] | 6.2 mm |
| Voltage - Max [Max] | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 41.93 | |
| 5 | $ 39.28 | |||
| 20 | $ 38.32 | |||
| 40 | $ 37.11 | |||
| 60 | $ 36.15 | |||
| 100 | $ 35.18 | |||
Description
General part information
CM30-1 Series

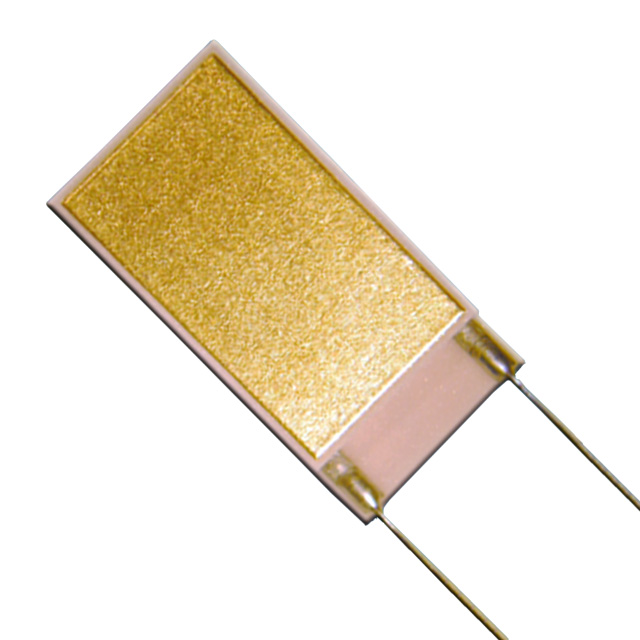

Peltier Module 4.5W @ 27°C 1.9 A 85°C
