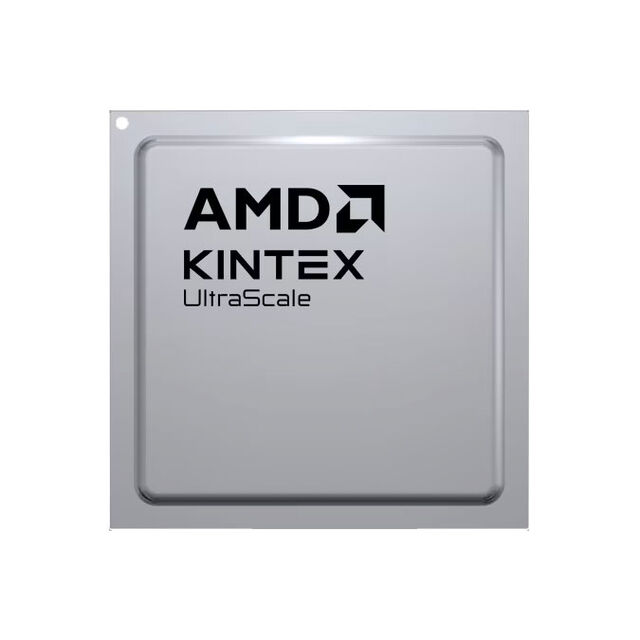

XCKU115-2FLVB2104I

Active

AMD

FPGA, KINTEX ULTRASCALE, FCBGA-2104

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN

XCKU115-2FLVB2104I

Active

AMD

FPGA, KINTEX ULTRASCALE, FCBGA-2104

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XCKU115-2FLVB2104I

Mounting Type	Surface Mount
Number of I/O	702
Number of LABs/CLBs	82920
Number of Logic Elements/Cells	1451100
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	FCBGA, 2104-BBGA
Supplier Device Package	2104-FCBGA
Supplier Device Package [x]	47.5
Supplier Device Package [y]	47.5
Total RAM Bits	77721600 Bits
Voltage - Supply [Max]	0.979 V
Voltage - Supply [Min]	0.922 V

XCKU115 Series

Part	Number of I/O	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Total RAM Bits	Number of Logic Elements/Cells	Number of LABs/CLBs	Mounting Type	Supplier Device Package [x]	Supplier Device Package [y]
AMD XCKU115-2FLVD1517I	338	1517-FCBGA (40x40)	0.979 V	0.922 V	1517-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-1FLVB2104I	702	2104-FCBGA	0.979 V	0.922 V	2104-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount	47.5	47.5
AMD XCKU115-2FLVB2104I	702	2104-FCBGA	0.979 V	0.922 V	2104-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount	47.5	47.5
AMD XCKU115-2FLVD1924I	832 I/O	1924-FCBGA (45x45)	0.979 V	0.922 V	1924-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-1FLVD1924I	832 I/O	1924-FCBGA (45x45)	0.979 V	0.922 V	1924-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-2FLVF1924I	728	1924-FCBGA (45x45)	0.979 V	0.922 V	1924-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-1FLVF1924I	728	1924-FCBGA (45x45)	0.979 V	0.922 V	1924-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-1FLVA1517I	624	1517-FCBGA (40x40)	0.979 V	0.922 V	1517-BBGA FCBGA	100 °C	-40 C	77721600 Bits	1451100	82920	Surface Mount
AMD XCKU115-3FLVA2104E	832 I/O	2104-FCBGA	1.03 V	0.97 V	2104-BBGA FCBGA	100 °C	0 °C	77721600 Bits	1451100	82920	Surface Mount	47.5	47.5
AMD XCKU115-1FLVA2104C	832 I/O	2104-FCBGA	0.979 V	0.922 V	2104-BBGA FCBGA	85 °C	0 °C	77721600 Bits	1451100	82920	Surface Mount	47.5	47.5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13578.75
Newark	Each	1	$ 13359.98

Description

General part information

XCKU115 Series

Kintex® UltraScale™ Field Programmable Gate Array (FPGA) IC 702 77721600 1451100 2104-BBGA, FCBGA

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
