1558737-8

Active

TE Connectivity Potter & Brumfield Relays

SR6-423-L024

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

SR6-423-L024

Technical Specifications

Parameters and characteristics for this part

Specification	1558737-8

Approval Agency	cURus, TUV, VDE
Coil Current	29.2 mA
Coil Insulation	Class F
Coil Resistance	822 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	6PST-4NO/2NC (4 Form A, 2 Form B)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

Part	Relay Type	Switching Voltage [Max]	Coil Current	Coil Voltage	Must Operate Voltage	Contact Material	Coil Resistance	Coil Type	Coil Insulation	Load - Max Switching	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Must Release Voltage	Mounting Type	Contact Rating (Current)	Contact Form
TE Connectivity Potter & Brumfield Relays 1558737-8	General Purpose	400 VAC	29.2 mA	24 VDC	16.8 VDC	Gold (Au) Silver Tin Oxide (AgSnO)	822 Ohms	Non Latching	Class F	3200 VA	cURus TUV VDE	85 °C	-40 °C	PC Pin	2.4 VDC	Through Hole	8 A	6PST-4NO/2NC (4 Form A 2 Form B)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

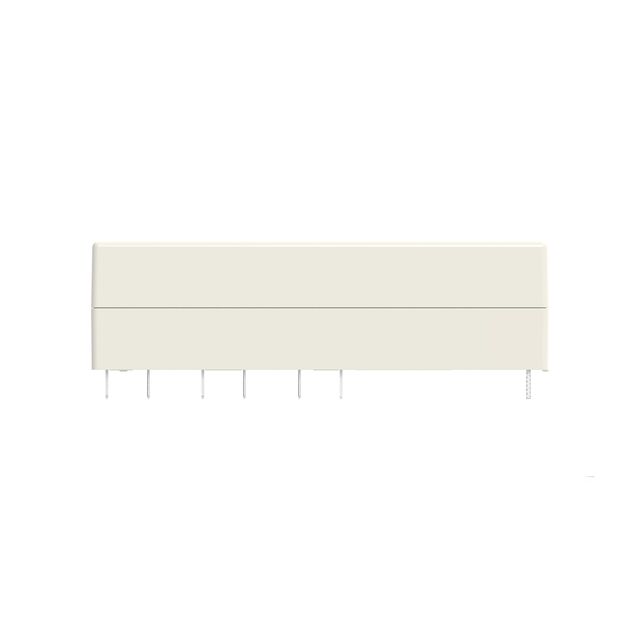

General Purpose Relay 6PST-4NO/2NC (4 Form A, 2 Form B) 24VDC Coil Through Hole
