BU-4444-A-12-2

Active

Mueller Electric Co

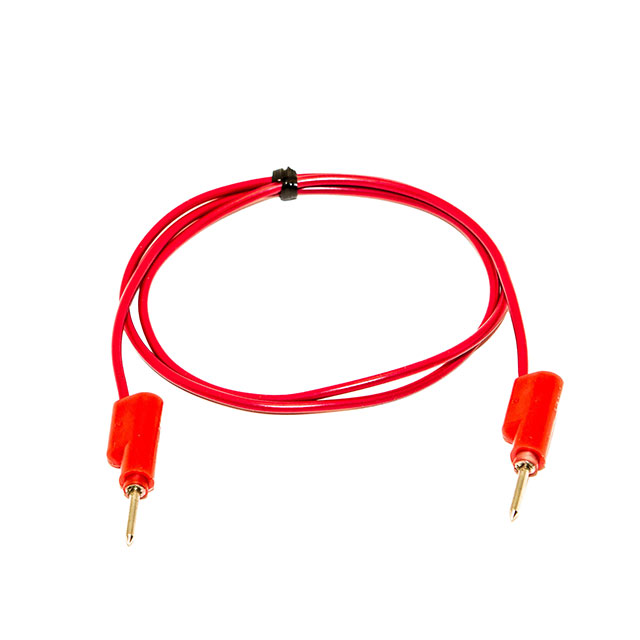

RED STACKABLE 0.080" PIN PLUG ON BOTH ENDS, 12" 20G PVC

Search across all available documentation for this part.

Active

Mueller Electric Co

RED STACKABLE 0.080" PIN PLUG ON BOTH ENDS, 12" 20G PVC

Technical Specifications

Parameters and characteristics for this part

Part	Configuration	Wire Gauge	1st Connector	Material - Insulation	Contents	Voltage - Rated	2nd Connector	2nd Connector	Current Rating (Amps)	Temperature Range	Temperature Range	Cable Length	Cable Length	Contents [custom]
Mueller Electric Co BU-4444-A-24-0	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	1 Lead Black	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	24 "	609.6 mm
Mueller Electric Co BU-4444-A-36-0	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	1 Lead Black	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	36 in	914.4 mm
Mueller Electric Co BU-4444-A-12-2	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	Red	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	12 in	304.8 mm	1
Mueller Electric Co BU-4444-A-12-0	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	1 Lead Black	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	12 in	304.8 mm
Mueller Electric Co BU-4444-A-24-2	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	Red	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	24 "	609.6 mm	1
Mueller Electric Co BU-4444-A-36-2	Pin Tip to Pin Tip	22 AWG	Stackable Tip Plug	Poly-Vinyl Chloride (PVC)	Red	300 V	Tip Plug	Stackable	15 A	105 °C	221 °F	36 in	914.4 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Tip Plug, Stackable To Tip Plug, Stackable Test Lead 300V 1 Lead, Red
