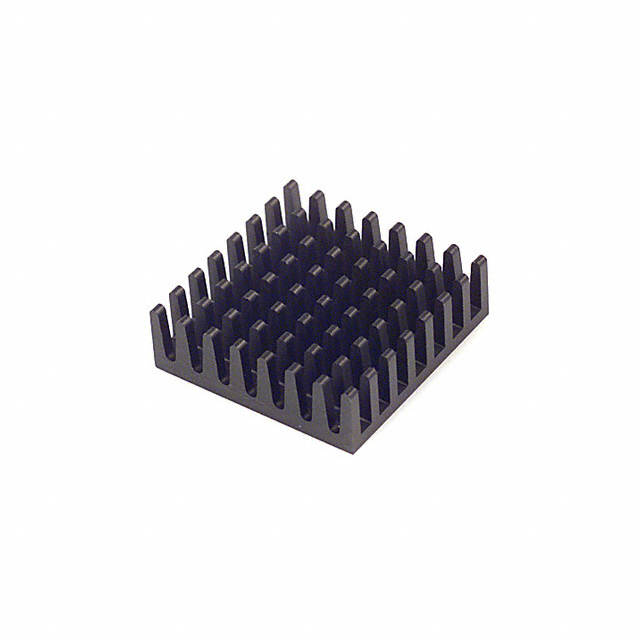

658-35AB

Active

Wakefield-Vette

HEATSINK CPU 28MM SQBLK W/O TAPE

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CPU 28MM SQBLK W/O TAPE

Technical Specifications

Parameters and characteristics for this part

Specification	658-35AB

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height	8.89 mm
Fin Height	0.35 in
Length [x]	27.94 mm
Length [x]	1.1 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	800 LFM, 3 °C/W
Type	Top Mount
Width [x]	1.1 "
Width [x]	27.94 mm

Part	Fin Height	Fin Height	Length [x]	Length [x]	Shape	Material	Thermal Resistance @ Forced Air Flow	Package Cooled	Attachment Method	Width [x]	Width [x]	Material Finish	Type
Wakefield-Vette 658-35ABT4E	8.89 mm	0.35 in	27.94 mm	1.1 "	Pin Fins Square	Aluminum	3 °C/W 800 LFM	BGA	Thermal Tape Adhesive (Included)	1.1 "	27.94 mm	Black Anodized	Top Mount
Wakefield-Vette 658-35AB	8.89 mm	0.35 in	27.94 mm	1.1 "	Pin Fins Square	Aluminum	3 °C/W 800 LFM	BGA	Thermal Tape Adhesive (Not Included)	1.1 "	27.94 mm	Black Anodized	Top Mount
Wakefield-Vette 658-35ABT5	8.89 mm	0.35 in	27.94 mm	1.1 "	Pin Fins Square	Aluminum	3 °C/W 800 LFM	BGA	Thermal Tape Adhesive (Not Included)	1.1 "	27.94 mm	Black Anodized	Top Mount
Wakefield-Vette 658-35ABT6	8.89 mm	0.35 in	27.94 mm	1.1 "	Pin Fins Square	Aluminum	3 °C/W 800 LFM	BGA	Thermal Tape Adhesive (Not Included)	1.1 "	27.94 mm	Black Anodized	Top Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
