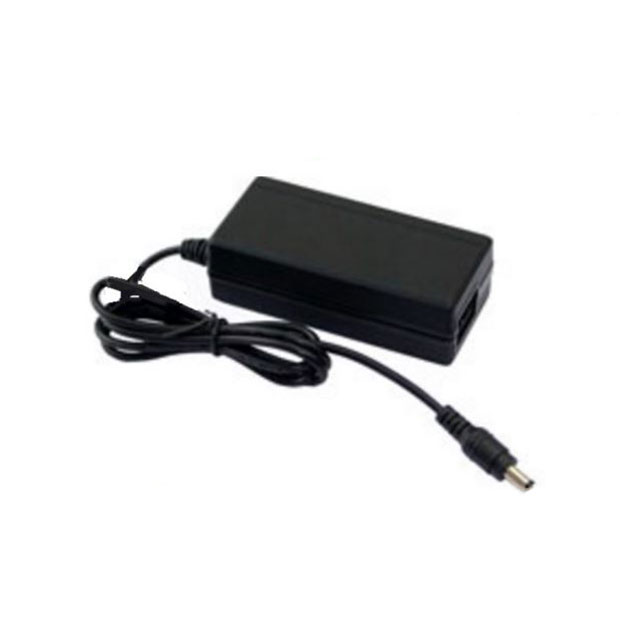

PSAD36BSF-12-B2
ActiveTT Electronics/Power Partners Inc.
AC/DC DESKTOP ADAPTER 12V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSAD36BSF-12-B2
ActiveTT Electronics/Power Partners Inc.
AC/DC DESKTOP ADAPTER 12V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAD36BSF-12-B2 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, FCC, cULus |
| Cord Length | 47 " |
| Cord Length | 1.2 m |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [x] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.78 " |
| Size / Dimension [x] | 96 mm |
| Size / Dimension [y] | 45.5 mm |
| Size / Dimension [y] | 1.79 " |
| Size / Dimension [z] | 1.2 " |
| Size / Dimension [z] | 30.5 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.00 | |
| 5 | $ 13.62 | |||
| 10 | $ 12.86 | |||
| 25 | $ 12.10 | |||
| 50 | $ 11.35 | |||
| 100 | $ 10.59 | |||
| 250 | $ 10.21 | |||
| 500 | $ 10.06 | |||
Description
General part information
PSAD36BSF Series
12V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
