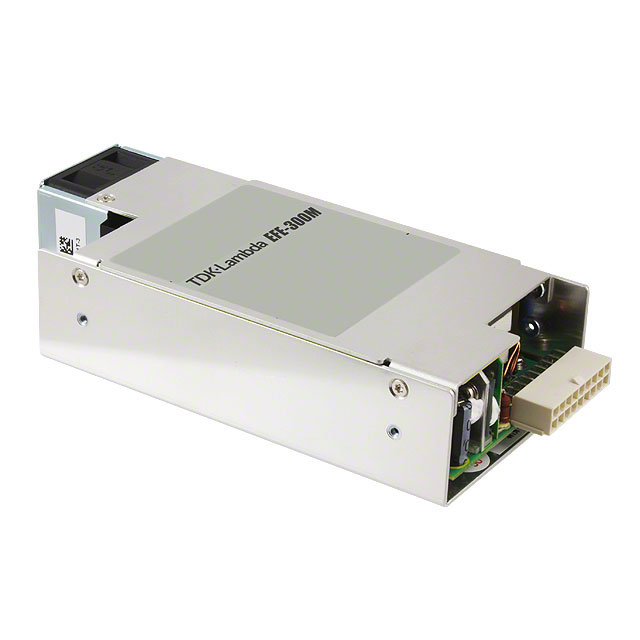

U5Y0064

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 300W, 90V AC TO 264V AC, FIXED

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 300W, 90V AC TO 264V AC, FIXED

Technical Specifications

Parameters and characteristics for this part

Specification	U5Y0064

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	12.5 A
Efficiency	90 %
Features	Remote On/Off, Universal Input, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	300 W
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Modular Power Supplies 300W 24V 12.5A W/Fan Medical

Part	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Isolation	Power (Watts)	Efficiency	Voltage - Output 1	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Type	Applications
TDK-LAMBDA U5Y0064	90 VAC	264 VAC	Remote On/Off Standby Output Universal Input	4000 V	300 W	90 %	24 V	Chassis Mount	1.34 in	3 "	152.4 mm	6 in	34 mm	76.2 mm	1	CE	70 °C	0 °C	12.5 A	Enclosed	ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Power Supplies 300W 24V 12.5A W/Fan Medical
