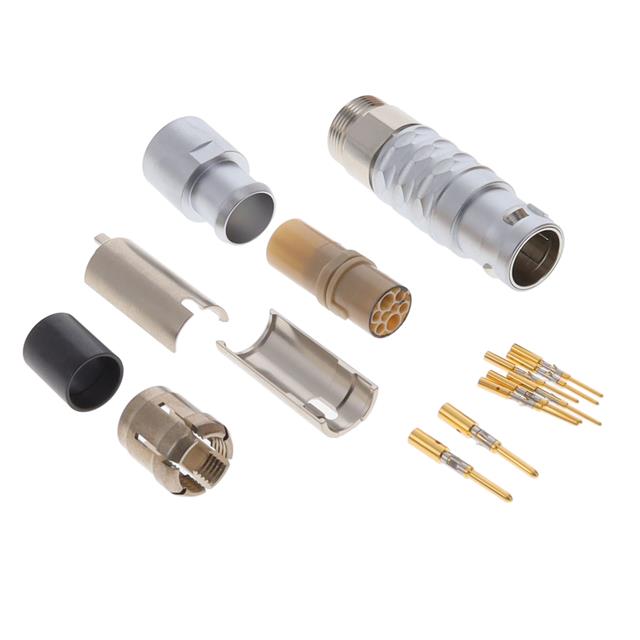

SB2LAC-P08PMM2-820S

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SB2LAC-P08PMM2-820S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Cable Opening [custom]	0.276 in, 0.323 in, 7 mm, 8.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

Part	Number of Positions	Shell Size - Insert	Primary Material	Shell Material	Color	Contact Finish - Mating	Shell Finish	Fastening Type	Voltage Rating	Features	Insert Material	Cable Opening [custom]	Ingress Protection	Contact Material	Applications	Orientation	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
ODU SB2LAC-P08PMM2-820S	8	2	Metal	Brass	Silver	Gold	Chrome over Nickel	Push-Pull	48 VDC	Medical (IEC 60601 (2 MOOP/2 MOPP))	Polyetheretherketone (PEEK)	0.276 in 0.323 in 7 mm 8.2 mm	IP50	Brass	Industrial Medical Military Testing Equipment & Measurement	A	Crimp	Male Pins Plug	-40 °C	120 °C	10 A	Shielded	Free Hanging (In-Line)
ODU SB2LAC-P12PFG2-720S	12	2	Metal	Brass	Silver	Gold	Chrome over Nickel	Push-Pull	48 VDC	Medical (IEC 60601 (2 MOOP/2 MOPP))	Polyetheretherketone (PEEK)		IP50	Brass	Industrial Medical Military Testing Equipment & Measurement	A	Crimp	Male Pins Plug	-40 °C	120 °C	7.5 A	Shielded	Free Hanging (In-Line)	0.283 in	0.236 in	7.2 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp
