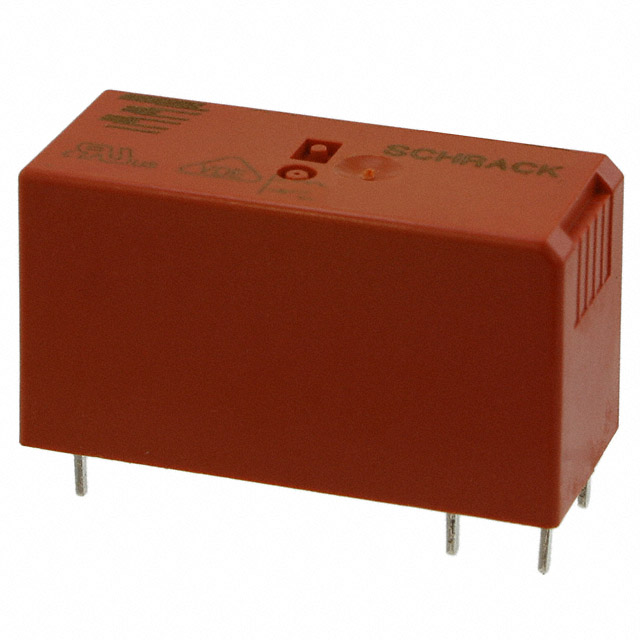

RTX3-1AT-B003
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 3V
Deep-Dive with AI
Search across all available documentation for this part.
RTX3-1AT-B003
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 3V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTX3-1AT-B003 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 216 mA |
| Coil Insulation | Class F |
| Coil Resistance | 14 Ohms |
| Coil Type | Latching, Single Coil |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Tungsten (W), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.25 VDC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.23 | |
| 10 | $ 12.65 | |||
| 25 | $ 12.02 | |||
| 50 | $ 11.39 | |||
| 100 | $ 11.14 | |||
Description
General part information
RTX3-1AT Series
General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
