42R51-5125

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C8 PNL SLDR

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT RCPT IEC320-C8 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	42R51-5125

Approval Agency	VDE, UL, cUL
Connector Style	IEC 320-C8
Connector Type	Receptacle, Female Sockets
Material Flammability Rating	UL94 V-0
Number of Positions	2
Panel Cutout Dimensions [x]	21 mm
Panel Cutout Dimensions [y]	12.4 mm
Termination	Solder

Part	Connector Style	Termination	Connector Type	Approval Agency	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Positions
Power Dynamics, Inc. 42R51-5123	IEC 320-C8	Solder	Receptacle Male Pins - Module	cUL UL VDE	UL94 V-0	20 mm	27.5 mm
Power Dynamics, Inc. 42R51-5125	IEC 320-C8	Solder	Receptacle Female Sockets	cUL UL VDE	UL94 V-0	12.4 mm	21 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

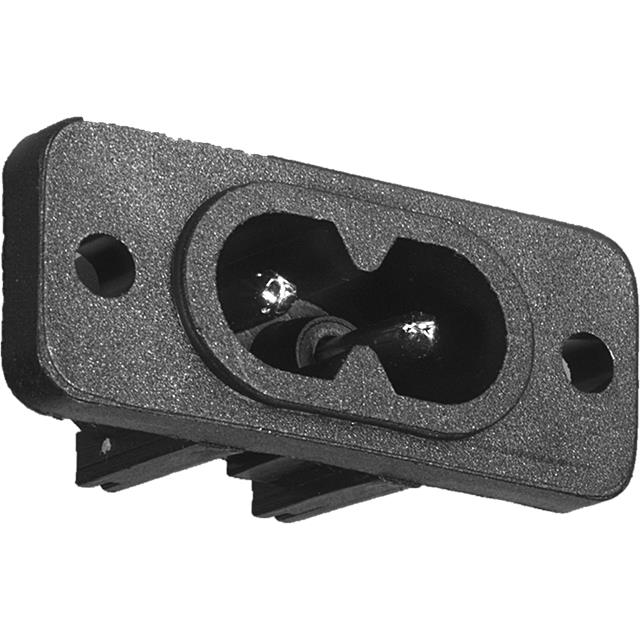

Power Entry Connector Receptacle, Female Sockets IEC 320-C8 Panel Mount

Technical documentation and resources
