A6275SA
ObsoleteAllegro MicroSystems
IC LED DRVR LINEAR 75.5MA 16DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A6275SA
ObsoleteAllegro MicroSystems
IC LED DRVR LINEAR 75.5MA 16DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A6275SA |
|---|---|
| Current - Output / Channel | 75.5 mA |
| Frequency | 20 MHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Number of Outputs | 8 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 0.3 in |

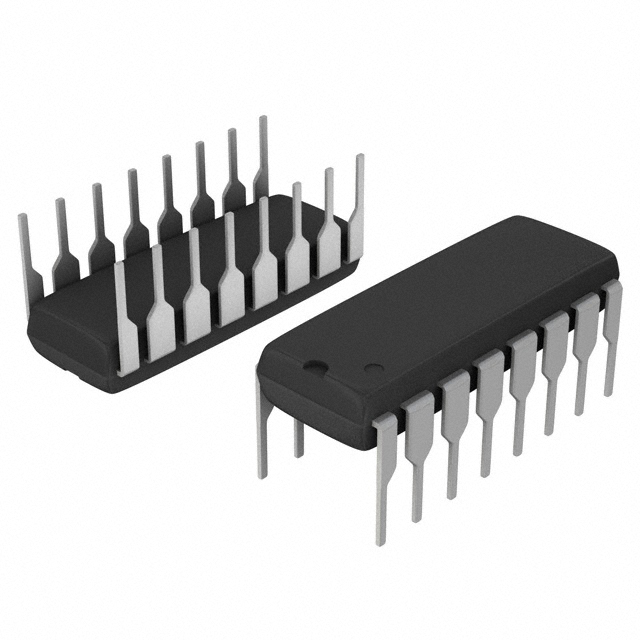

| Package / Case | 16-DIP |
| Package / Case | 7.62 mm |
| Supplier Device Package | 16-DIP |
| Topology | Shift Register |
| Type | Linear |
| Voltage - Output | 4 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A6275 Series
LED Driver IC 8 Output Linear Shift Register Dimming 75.5mA 16-DIP
