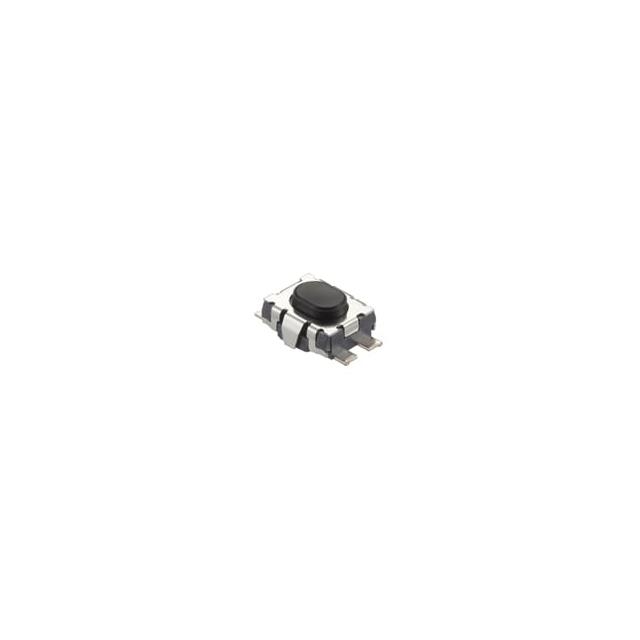

SKTHAHE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 25MA 16V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 25MA 16V

Technical Specifications

Parameters and characteristics for this part

Specification	SKTHAHE010

Actuator Height off PCB, Vertical [z]	1.8 mm
Actuator Orientation	Top Actuated
Actuator Type	Oval Button
Circuit	SPST-NO
Contact Rating @ Voltage	16 VDC, 25 mA
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	306 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	3.5 mm
Outline [y]	3.2 mm
Switch Function	Off-Mom
Switch Travel	0.12 mm
Termination Style	SMD (SMT) Tab

Part	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Travel	Contact Rating @ Voltage	Actuator Orientation	Circuit	Termination Style	Actuator Height off PCB, Vertical [z]	Illumination	Switch Function	Actuator Type	Mounting Type	Outline [y]	Outline [x]
Alps Alpine SKTHAHE010	306 gf	90 °C	-40 °C	200000 Cycles	0.12 mm	16 VDC 25 mA	Top Actuated	SPST-NO	SMD (SMT) Tab	1.8 mm	Non-Illuminated	Off-Mom	Oval Button	Surface Mount Right Angle	3.2 mm	3.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount, Right Angle
