PM3-PRDW12.0

Active

Bivar Inc.

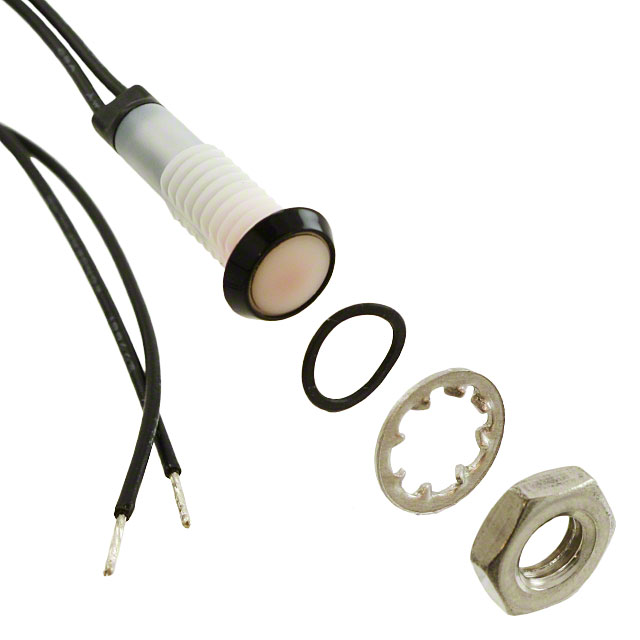

LED PANEL MOUNT INDICATOR, RED, 48 V, 5.943 MM, 20 MA, 40 MCD, IP67

Search across all available documentation for this part.

Active

Bivar Inc.

LED PANEL MOUNT INDICATOR, RED, 48 V, 5.943 MM, 20 MA, 40 MCD, IP67

Technical Specifications

Parameters and characteristics for this part

Specification	PM3-PRDW12.0

Ingress Protection	IP67
Lamp Color	Red
Lens Color	White
Lens Size [diameter]	5.9 mm
Lens Transparency	Diffused
Millicandela Rating	40 mcd
Panel Cutout Dimensions [custom]	4.83 mm
Panel Cutout Dimensions [custom]	0.19 "
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Wire Leads - 12" (304.80mm)
Type	LED
Viewing Angle	120 °
Voltage [Max]	48 V
Voltage [Min]	8 V
Wavelength - Peak	645 nm

Part	Lamp Color	Lens Size [diameter]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Voltage [Min]	Voltage [Max]	Ingress Protection	Viewing Angle	Panel Cutout Shape	Ratings	Wavelength - Peak	Termination Style	Lens Transparency	Type	Millicandela Rating	Lens Color
Bivar Inc. PM3-PRDW12.0	Red	5.9 mm	4.83 mm	0.19 "	8 V	48 V	IP67	120 °	Round	AC/DC	645 nm	Wire Leads - 12" (304.80mm)	Diffused	LED	40 mcd	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 10.68
Newark	Each	1	$ 11.92

General part information

LED Panel Indicator Red Diffused 120° 8V ~ 48V 20mA Wire Leads - 12" (304.80mm)
