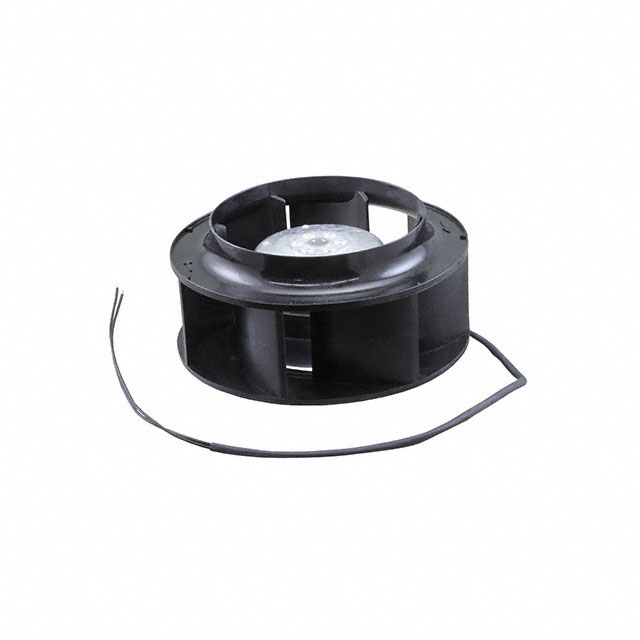

UF133(72)APA23-H1S2A
ActiveMechatronics Bearing Group
FAN IMP MTRZD 133X72.5MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF133(72)APA23-H1S2A
ActiveMechatronics Bearing Group
FAN IMP MTRZD 133X72.5MM 230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF133(72)APA23-H1S2A |
|---|---|
| Air Flow | 5.26 m³/min |
| Air Flow | 188 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.24 A |
| Fan Type | Motorized Impellers |
| Material - Blade | Polyamide (PA6), Nylon 6, Glass Reinforced |
| Material - Frame | Aluminum |
| Noise | 50 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| RPM | 2780 RPM |
| Size / Dimension [diameter] | 133 mm |
| Static Pressure | 0.88 in H2O |
| Static Pressure | 219.2 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
| Width [y] | 72.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 86.43 | |
| 10 | $ 77.68 | |||
| 25 | $ 76.58 | |||
| 50 | $ 71.66 | |||
| 100 | $ 70.02 | |||
Description
General part information
UF133 Series
Fan Motorized Impellers 230VAC Round - 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
