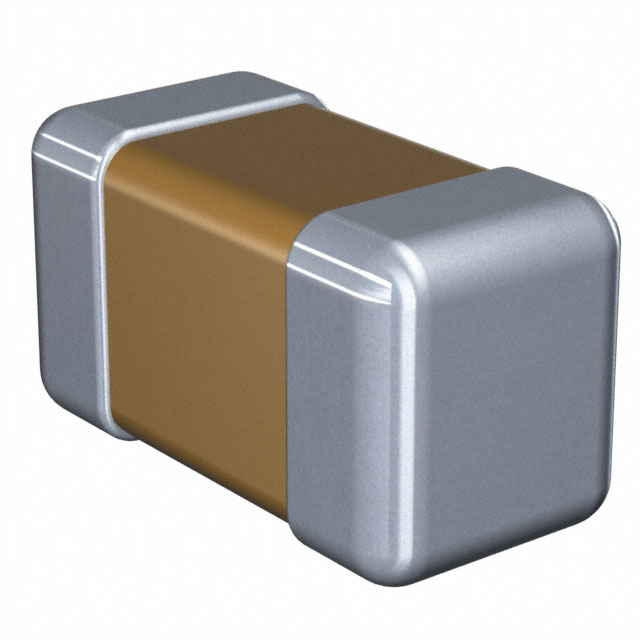

C0603S102K1RACAUTO

Active

KEMET

CAP, 1000PF, 100V, 10%, X7R, 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC0603S102K1RACAUTO Spec Datasheet +2

C0603S102K1RACAUTO

Active

KEMET

CAP, 1000PF, 100V, 10%, X7R, 0603

Deep-Dive with AI

DocumentsC0603S102K1RACAUTO Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C0603S102K1RACAUTO

Applications	Automotive
Capacitance	0.001 µF
Features	Floating Electrode
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Ratings	AEC-Q200
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.034 in
Thickness (Max) [Max]	0.87 mm
Tolerance	10 %
Voltage - Rated	100 V

C0603S Series

Part	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Features	Applications	Capacitance	Mounting Type	Tolerance	Voltage - Rated
KEMET C0603S472K3RACAUTO	AEC-Q200	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	Automotive	4700 pF	MLCC Surface Mount	10 %	25 VDC
KEMET C0603S102K1RACAUTO	AEC-Q200	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	Automotive	0.001 µF	MLCC Surface Mount	10 %	100 V
KEMET C0603S222J5RAC7867		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	2200 pF	MLCC Surface Mount	5 %	50 VDC
KEMET C0603S222K5RAC7867		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	2200 pF	MLCC Surface Mount	10 %	50 VDC
KEMET C0603S223J3RACAUTO	AEC-Q200	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	Automotive	0.022 µF	MLCC Surface Mount	5 %	25 VDC
KEMET C0603S681K3RAC7867		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	680 pF	MLCC Surface Mount	10 %	25 VDC
KEMET C0603S471K3RACAUTO	AEC-Q200	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	Automotive	470 pF	MLCC Surface Mount	10 %	25 VDC
KEMET C0603S153K3RAC7867		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	15000 pF	MLCC Surface Mount	10 %	25 VDC
KEMET C0603S221K1RACTU		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	220 pF	MLCC Surface Mount	10 %	100 V
KEMET C0603S221K5RAC7867		0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	0.034 in	0.87 mm	-55 °C	125 °C	X7R	Floating Electrode	General Purpose	220 pF	MLCC Surface Mount	10 %	50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.39
		10	$ 0.26
		50	$ 0.19
		100	$ 0.16
		500	$ 0.12
		1000	$ 0.10
	Tape & Reel (TR)	4000	$ 0.09
		8000	$ 0.09
		12000	$ 0.08
		28000	$ 0.08
		100000	$ 0.07
Newark	Each (Supplied on Cut Tape)	10	$ 0.21
		25	$ 0.19
		50	$ 0.16
		100	$ 0.14
		250	$ 0.13
		500	$ 0.13
		1000	$ 0.12

Description

General part information

C0603S Series

1000 pF ±10% 100V Ceramic Capacitor X7R 0603 (1608 Metric)
