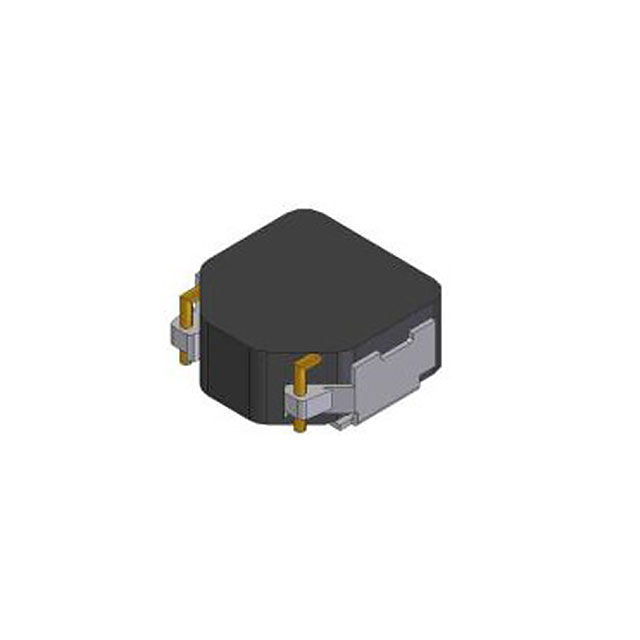

DFEH10040D-2R2M=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 12A 7.5 MOHM

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 12A 7.5 MOHM

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Material - Core	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)	Package / Case	Tolerance	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Current Rating (Amps)	Current - Saturation (Isat)	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. DFEH10040D-3R3M=P3	Surface Mount	Iron Powder	Shielded	0.429 "	10 mm	10.9 mm	0.394 in	12 mOhm	Nonstandard	20 %	100 MHz	-40 °C	155 °C	3.3 µH	10 A	13 A	AEC-Q200	0.157 in	4 mm
Murata Power Solutions Inc. DFEH10040D-330M=P3
Murata Power Solutions Inc. DFEH10040D-220M=P3	Surface Mount	Iron Powder	Shielded	0.429 "	10 mm	10.9 mm	0.394 in		Nonstandard	20 %	100 MHz	-40 °C	155 °C	22 µH	3.8 A	5.3 A	AEC-Q200	0.157 in	4 mm	70 mOhm
Murata Power Solutions Inc. DFEH10040D-2R2M=P3	Surface Mount	Iron Powder	Shielded	0.429 "	10 mm	10.9 mm	0.394 in	7.5 mOhm	Nonstandard	20 %	100 MHz	-40 °C	155 °C	2.2 µH	12 A	14 A	AEC-Q200	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µH Shielded Inductor 12 A 7.5mOhm Max Nonstandard
