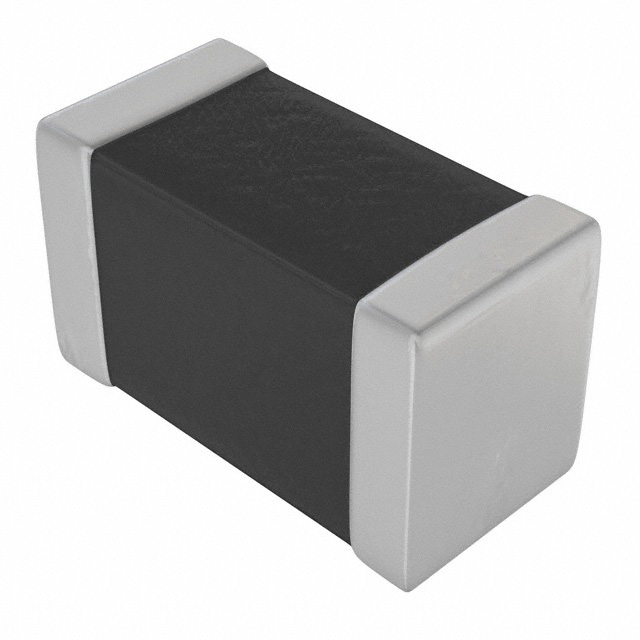

GMK316SD104JL-T
TAIYO YUDEN
CAP, LOW DISTORT, 1206, 35V, 100NF 5%, T&R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
GMK316SD104JL-T
TAIYO YUDEN
CAP, LOW DISTORT, 1206, 35V, 100NF 5%, T&R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GMK316SD104JL-T |
|---|---|
| Applications | General Purpose |
| Capacitance | 100000 pF |
| Features | Low Distortion |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Thickness (Max) | 1.8 mm |
| Thickness (Max) [Max] | 0.071 " |
| Tolerance | 5 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GMK316S Series
0.1 µF ±5% 35V Ceramic Capacitor 1206 (3216 Metric)
