Technical Specifications
Parameters and characteristics for this part
| Specification | RUZ-050505/H |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 70 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 5 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.1 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

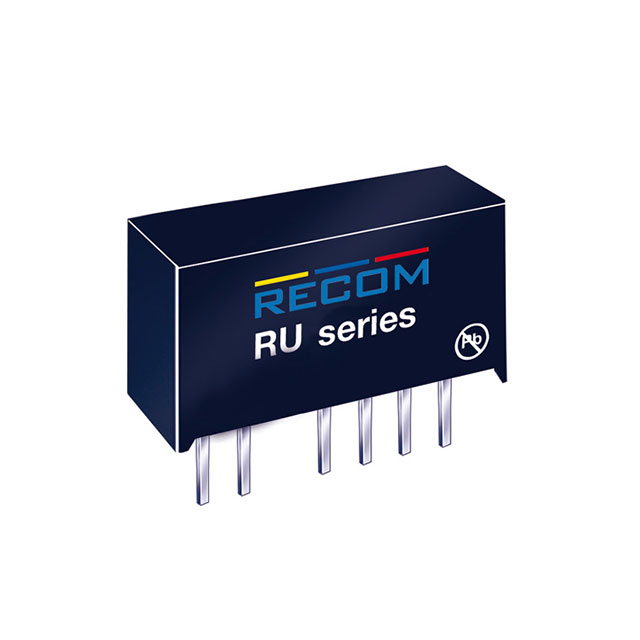

RUZ-050505 Series
Isolated DC/DC Converters - Through Hole 2W DC/DC 1kV UNREG 5Vin 55Vout
