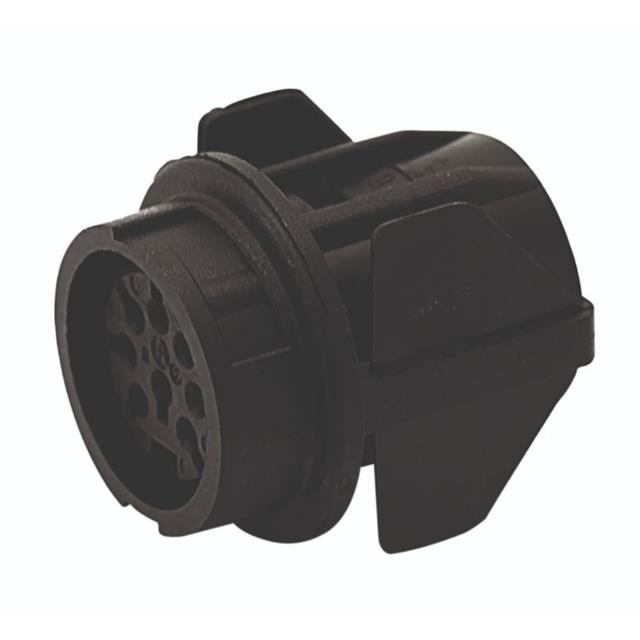

T 3427 500

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Shell Material	Contact Size	Insert Material	Mounting Type	Connector Type	Material Flammability Rating	Type	Ingress Protection	Number of Positions	Shielding	Housing Color	Note	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Shell Size - Insert	Contact Type	Voltage Rating	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Shell Finish	Color	Mounting Feature	Termination
Amphenol Tuchel Industrial T 3427 550	Keyed	Plastic	1.5 mm	Thermoplastic	Panel Mount Snap-In	Receptacle Housing	UL94 V-0	For Female Sockets	IP40	6	Unshielded	Black	Contacts Not Included	Bayonet Lock	100 °C	-40 °C	Circular	M16-6	Crimp
Amphenol Tuchel Industrial T 3427 500	Keyed	Plastic			Panel Mount Snap-In	Receptacle Female Sockets			IP40	6				Bayonet Lock	100 °C	-40 °C		M16-6		250 VDC	Silver	7 A	Plastic
Amphenol Tuchel Industrial T 3427 100	Keyed	Die Cast				Receptacle Female Sockets			IP40	6				Bayonet Lock	100 °C	-40 °C		M16-6		250 VDC	Silver	7 A	Metal	Nickel	Silver
Amphenol Tuchel Industrial T 3427 050	Keyed	Plastic	1.5 mm	Thermoplastic		Receptacle Housing	UL94 V-0	For Female Sockets	IP40	6	Unshielded	Black	Contacts Not Included	Bayonet Lock	100 °C	-40 °C	Circular	M16-6	Crimp							Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T 3427 200
Amphenol Tuchel Industrial T 3427 600	Keyed	Plastic			Panel Mount Right Angle Through Hole	Receptacle Female Sockets			IP40	6				Bayonet Lock	100 °C	-40 °C		M16-6		250 VDC	Silver	7 A	Plastic				Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
