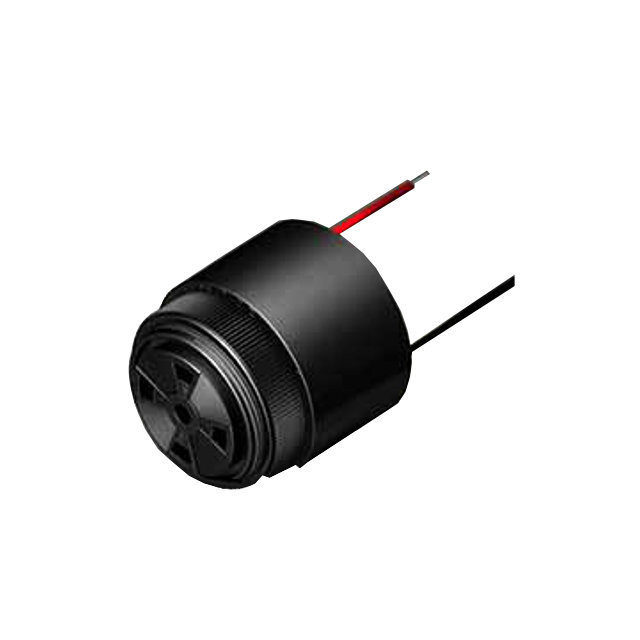

MB-09-201-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB-09-201-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB-09-201-W(F)

Approval Agency	UR, UL
Current - Supply [Max]	20 mA
Current - Supply [Min]	5 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	35.05 mm
Height - Seated (Max) [Max] [z]	1.38 in
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	AC
Operating Mode	Pulse, Fast
Port Location	Top
Size / Dimension [diameter]	1.41 in
Size / Dimension [diameter]	35.81 mm
Sound Pressure Level (SPL)	95 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	120 V
Voltage Range [Min]	30 VDC

MB-09-201 Series

Part	Input Type	Voltage Range [Max]	Voltage Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location	Driver Circuitry	Termination	Ingress Protection	Current - Supply [Min]	Current - Supply [Max]	Technology	Frequency	Operating Mode	Approval Agency	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]
Floyd Bell Inc MB-09-201-W(S)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Wire Leads	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Pulse Slow	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-Q(M)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Pulse Medium	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-W(F)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Wire Leads	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Fast Pulse	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-S(U)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Fast Pulse	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-S(S)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Pulse Slow	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-W(M)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Wire Leads	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Pulse Medium	UL UR	95 dB	1.409 in	35.8 mm
Floyd Bell Inc MB-09-201-S(F)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Fast Pulse	UL UR	95 dB	1.409 in	35.8 mm
Floyd Bell Inc MB-09-201-W(U)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Wire Leads	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Fast Pulse	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-Q(F)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Fast Pulse	UL UR	95 dB	1.41 in	35.81 mm
Floyd Bell Inc MB-09-201-S(M)	AC	120 V	30 VDC	35.05 mm	1.38 in	Top	Indicator Internally Driven	Screw Terminal Quick Connect Tab - 0.250" (6.35mm)	IP68 - Dust Tight Waterproof	5 mA	20 mA	Piezo	2.9 kHz	Pulse Medium	UL UR	95 dB	1.409 in	35.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.51

Description

General part information

MB-09-201 Series

Buzzers Indicator, Internally Driven Piezo 5 ~ 20mA 2.9kHz 95dB @ 120V, 61cm Panel Mount Wire Leads
