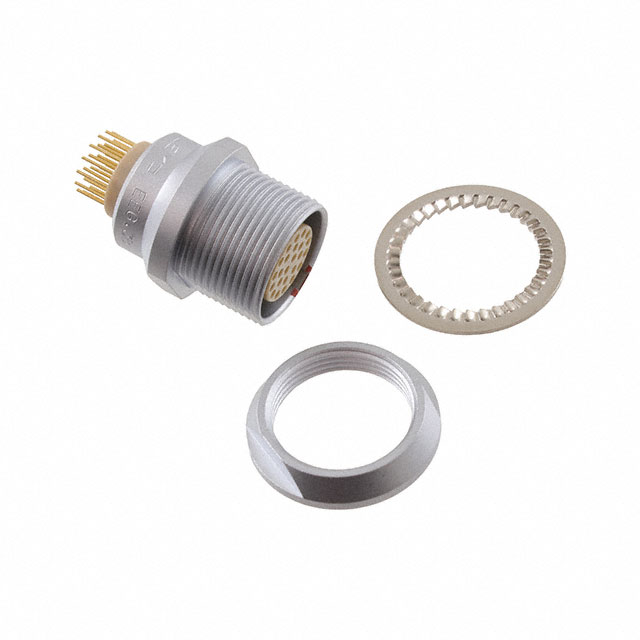

EEG.3B.324.CLN

Active

LEMO

CONN RCPT FMALE 24POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.3B.324.CLN

Active

LEMO

CONN RCPT FMALE 24POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EEG.3B.324.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	24
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	324
Shielding	Shielded
Termination	Solder

EEG.3B Series

Part	Material Flammability Rating	Contact Material	Primary Material	Shell Size - Insert	Shell Finish	Contact Finish - Mating	Shielding	Termination	Mounting Feature	Orientation	Shell Material	Current Rating (Amps)	Ingress Protection	Color	Mounting Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Connector Type	Number of Positions [custom]	Number of Positions [custom]
LEMO EEG.3B.324.CLN	UL94 V-0	Bronze	Metal	324	Chrome	Gold	Shielded	Solder	Bulkhead - Front Side Nut	G	Brass	4 A	IP50	Silver	Panel Mount Through Hole	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	24	Receptacle Female Sockets
LEMO EEG.3B.846.CYM1	UL94 V-0		Metal	846	Chrome	Gold	Shielded	Crimp	Bulkhead - Front Side Nut	G	Brass	10 A	IP50	Silver		Polyetheretherketone (PEEK)			-55 °C	250 °C	Push-Pull	2 6	Receptacle Female Sockets
LEMO EEG.3B.318.CLL	UL94 V-0	Bronze	Metal	318	Chrome	Gold	Shielded		Bulkhead - Front Side Nut	G	Brass	7 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	18	Receptacle Female Sockets
LEMO EEG.3B.308.CLL	UL94 V-0	Bronze	Metal	308	Chrome	Gold	Shielded		Bulkhead - Front Side Nut	G	Brass	13 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	8	Receptacle Female Sockets
LEMO EEG.3B.314.CYM	UL94 V-0	Bronze	Metal	314	Chrome	Gold	Shielded	Crimp	Bulkhead - Front Side Nut	G	Brass	9 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	14	Receptacle Female Sockets
LEMO EEG.3B.318.CYM	UL94 V-0	Bronze	Metal	318	Chrome	Gold	Shielded	Crimp	Bulkhead - Front Side Nut	G	Brass	7 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	18	Receptacle Female Sockets
LEMO EEG.3B.310.CYM	UL94 V-0	Bronze	Metal	310	Chrome	Gold	Shielded	Crimp	Bulkhead - Front Side Nut	G	Brass	12 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	10	Receptacle Female Sockets
LEMO EEG.3B.809.NLL3	UL94 V-0		Metal		Nickel	Gold	Shielded		Bulkhead - Front Side Nut	G	Brass	7 A	IP50	Silver		Polyetheretherketone (PEEK)			-55 °C	250 °C	Push-Pull		Receptacle Female Sockets	9	1
LEMO EEG.3B.304.CLL	UL94 V-0	Bronze	Metal	304	Chrome	Gold	Shielded		Bulkhead - Front Side Nut	G	Brass	19 A	IP50	Silver		Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	4	Receptacle Female Sockets
LEMO EEG.3B.314.CLN	UL94 V-0	Bronze	Metal	314	Chrome	Gold	Shielded	Solder	Bulkhead - Front Side Nut	G	Brass	9 A	IP50	Silver	Panel Mount Through Hole	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	-55 °C	250 °C	Push-Pull	14	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 107.57
		10	$ 98.71
		25	$ 94.91
		50	$ 91.75
		100	$ 86.69

Description

General part information

EEG.3B Series

24 Position Circular Connector Receptacle, Female Sockets Solder
