TWC-78-1

Active

Cinch Connectivity Solutions Trompeter

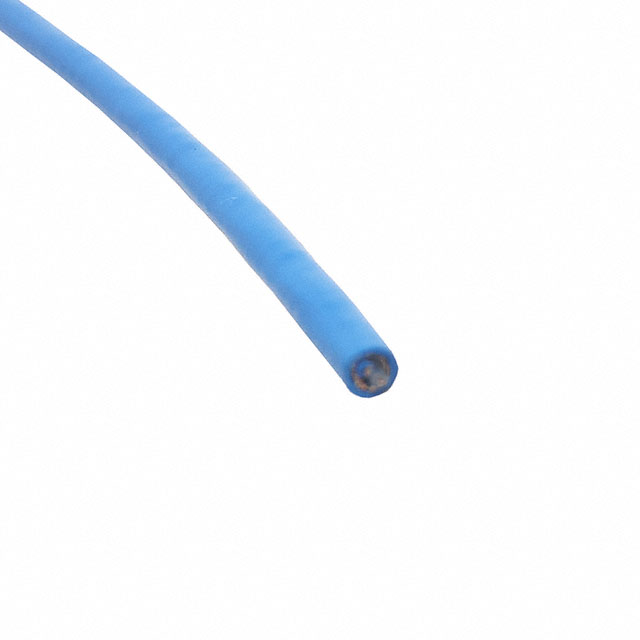

CABLE TWINAXIAL 500'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TWC-78-1

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	33 AWG
Dielectric Diameter [diameter]	2.16 mm
Dielectric Diameter [diameter]	0.085 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	78 Ohms
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage [custom]	93 %
Shield Material	Copper, Tinned
Shield Type	Braid

TWC Series

Part	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Shield Coverage	Cable Type	Jacket Color	Shield Type	Operating Temperature	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage [custom]	Shield Material	Dielectric Material	Conductor Strand [custom]	Features	Dielectric Diameter	Dielectric Diameter
Cinch Connectivity Solutions Trompeter TWCP-78-2	78 Ohms	1.83 mm	0.072 "	152.4 m	6000 in	95 %	Twinaxial - Plenum	Blue	Braid	125 °C
Cinch Connectivity Solutions Trompeter TWC-124-1A	124 Ohms	2.16 mm	0.085 in	152.4 m	6000 in		Twinaxial	Blue	Braid		Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Copper Tinned	7	38 AWG	-40 °C	80 C	93 %	Copper Tinned
Cinch Connectivity Solutions Trompeter TWC-78-1	78 Ohms	2.16 mm	0.085 in	152.4 m	6000 in		Twinaxial	Blue	Braid		Poly-Vinyl Chloride (PVC)	3.81 mm	0.15 in	Copper Tinned	7		-40 °C	80 C	93 %	Copper Tinned	Polytetrafluoroethylene (PTFE)	33 AWG
Cinch Connectivity Solutions Trompeter TWC-124-2	124 Ohms	4.11 mm	0.162 in	152.4 m	6000 in		Twinaxial	Blue	Braid		Poly-Vinyl Chloride (PVC)	6.22 mm	0.245 in	Copper Tinned	7		-40 °C	80 C	93 %	Copper Tinned		33 AWG
Cinch Connectivity Solutions Trompeter TWC-78-2	78 Ohms	3.91 mm	0.154 in	152.4 m	6000 in		Twinaxial	Blue	Braid		Poly-Vinyl Chloride (PVC)			Copper Tinned	7		-40 °C	80 C	93 %	Copper Tinned	Polytetrafluoroethylene (PTFE)	28 AWG
Cinch Connectivity Solutions Trompeter TWCH-78-2	78 Ohms			152.4 m	6000 in		Twinaxial	Blue	Braid		Polyolefin (PO)						-30 ░C	80 C	93 %				Flame Retardant	1.93 mm	0.076 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 585.27
		3	$ 541.45
		5	$ 522.67
		7	$ 510.16
		10	$ 497.64

Description

General part information

TWC Series

Twinaxial Cable 500.0' (152.40m) 78 Ohms
