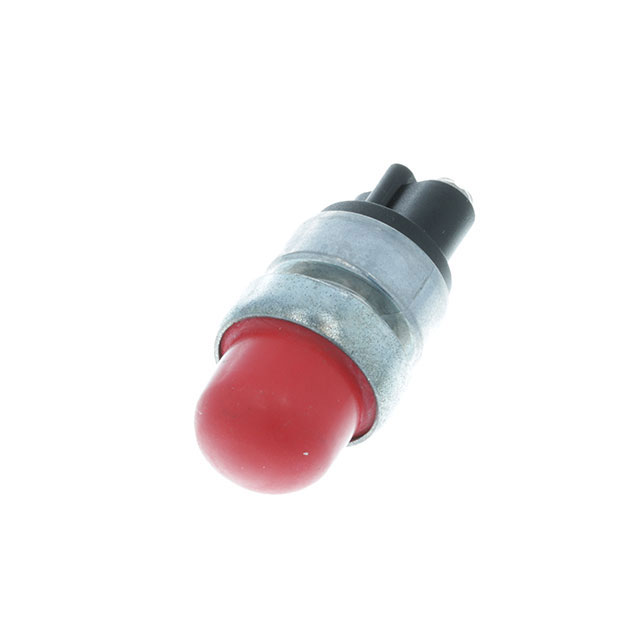

SB-1B-DC-3-R

Active

Switch Components

HIGH AMPS STARTER-NO RED BOOT

Search across all available documentation for this part.

Active

Switch Components

HIGH AMPS STARTER-NO RED BOOT

Technical Specifications

Parameters and characteristics for this part

Specification	SB-1B-DC-3-R

Actuator Marking	No Marking
Actuator Type	Rubber Cap, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	60 A
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - DC	12 V

Part	Panel Cutout Dimensions [diameter]	Mounting Type	Color - Actuator/Cap	Termination Style	Actuator Marking	Electrical Life	Circuit	Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Voltage Rating - DC	Mechanical Life
Switch Components SB-1B-DC-3-B	16 mm	Panel Mount Rear	Black	Screw Terminal	No Marking	6000 Cycles	SPST-NO	Standard	60 A	-25 °C	85 °C	Button Round Rubber Cap	Off-Mom	12 V	10000 Steps
Switch Components SB-1B-DC-3-C	16 mm	Panel Mount Rear	Silver	Screw Terminal	No Marking	6000 Cycles	SPST-NO	Standard	60 A	-25 °C	85 °C	Round Plunger Metal	Off-Mom	12 V	10000 Steps
Switch Components SB-1B-DC-8-B	16 mm	Panel Mount Rear	Black	Solder Turret	No Marking	6000 Cycles	SPST-NO	Standard	60 A	-20 C	85 °C	Button Round Rubber Cap	Off-Mom	12 V	10000 Steps
Switch Components SB-1B-DC-3-R	16 mm	Panel Mount Rear	Red	Screw Terminal	No Marking	6000 Cycles	SPST-NO	Standard	60 A	-25 °C	85 °C	Button Round Rubber Cap	Off-Mom	12 V	10000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
