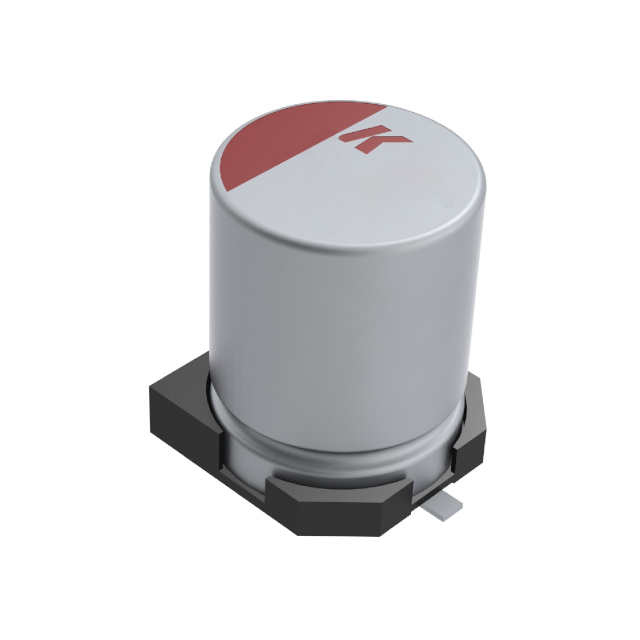

A766KE127M1CLAE027

Active

KEMET

SURFACE MOUNT SOLID POLYMER ALUMINUM CAPACITOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_A4089_A766.pdf Datasheet +1

A766KE127M1CLAE027

Active

KEMET

SURFACE MOUNT SOLID POLYMER ALUMINUM CAPACITOR

Deep-Dive with AI

DocumentsKEM_A4089_A766.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A766KE127M1CLAE027

Applications	General Purpose
Capacitance	120 µF
ESR (Equivalent Series Resistance)	27 mOhms
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.9 A
Ripple Current @ Low Frequency	145 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

A766KE Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Applications	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Mounting Type	Capacitance	ESR (Equivalent Series Resistance)	Tolerance	Type	Ripple Current @ Low Frequency	Voltage - Rated
KEMET A766KE476M1DLAE045	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	1.89 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	47 µF	45 mOhm	20 %	Polymer	94.5 mA	20 V
KEMET A766KE826M1CLAE030	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	2.76 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	82 µF	30 mOhms	20 %	Polymer	138 mA	16 V
KEMET A766KE157M1ALAE030	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	2.76 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	150 µF	30 mOhms	20 %	Polymer	138 mA	10 V
KEMET A766KE227M0JLAE022	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	3.22 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	220 µF	22 mOhms	20 %	Polymer	161 mA	6.3 V
KEMET A766KE127M1CLAE027	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	2.9 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	120 µF	27 mOhms	20 %	Polymer	145 mA	16 V
KEMET A766KE277M0GLAE022	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	3.22 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	270 µF	22 mOhms	20 %	Polymer	161 mA	4 V
KEMET A766KE567M0GLAE022	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	3.22 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	560 µF	22 mOhms	20 %	Polymer	161 mA	4 V
KEMET A766KE106M1ELAE060	7 mm	0.276 "	Radial Can - SMD	General Purpose	5000 Hrs	1.5 A	105 ░C	-55 °C	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	Surface Mount	10 µF	60 mOhms	20 %	Polymer	75 mA	25 VDC
