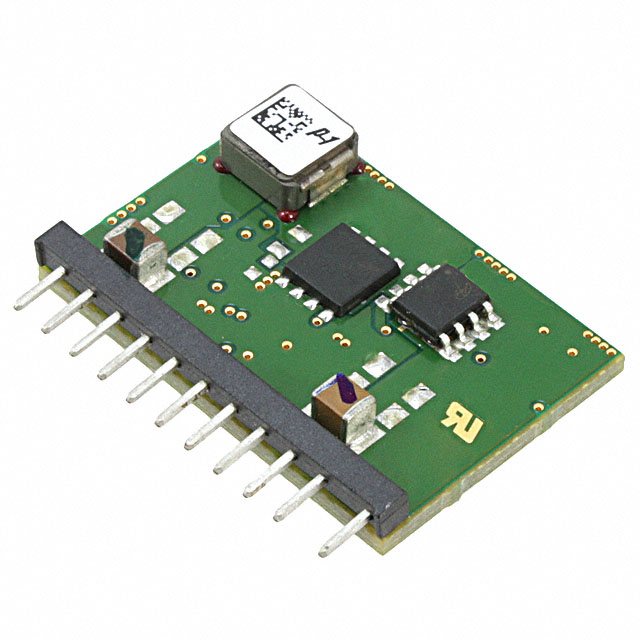

DP8105G-T100
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7-5.5V
Deep-Dive with AI
Search across all available documentation for this part.
DP8105G-T100
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7-5.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DP8105G-T100 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 11-SIP Module |
| Size / Dimension [x] | 1.2 " |
| Size / Dimension [x] | 30.5 mm |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [z] | 21.4 mm |
| Size / Dimension [z] | 0.84 " |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.06 | |
| 5 | $ 24.56 | |||
| 10 | $ 23.95 | |||
| 25 | $ 23.16 | |||
| 40 | $ 22.76 | |||
| 80 | $ 22.19 | |||
| 230 | $ 21.35 | |||
| 440 | $ 20.85 | |||
Description
General part information
DP8105G Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 5A 8V - 14V Input
Documents
Technical documentation and resources
No documents available
