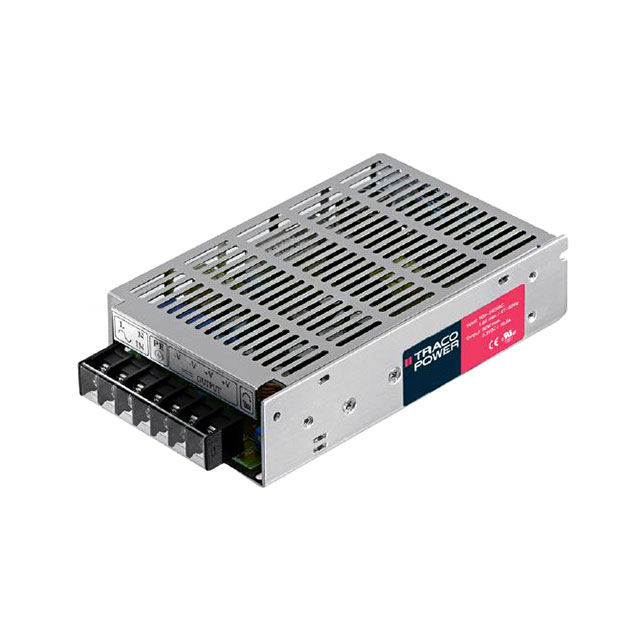

TXL 060-24S

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.5A 60W 6-PIN

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.5A 60W 6-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TXL 060-24S

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	2.5 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	99.1 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	35.1 mm
Size / Dimension [z]	1.38 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Current - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Approval Agency	Voltage - Output 1	Voltage - Isolation	Applications
Traco Power TXL 060-12S	84 %	5 A	1	-20 °C	70 °C	Enclosed	Chassis Mount	264 VAC 375 VDC	85 VAC 120 VDC	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	Adjustable Output Universal Input	CE cURus	12 V	3000 V	ITE (Commercial)
Traco Power TXL 060-24S	84 %	2.5 A	1	-20 °C	70 °C	Enclosed	Chassis Mount	264 VAC 375 VDC	85 VAC 120 VDC	35.1 mm	3.23 "	1.38 in	99.1 mm	82 mm	3.9 "	Adjustable Output Universal Input	CE cURus	24 V	3000 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 375 VDC Input
